Valsteam ADCA

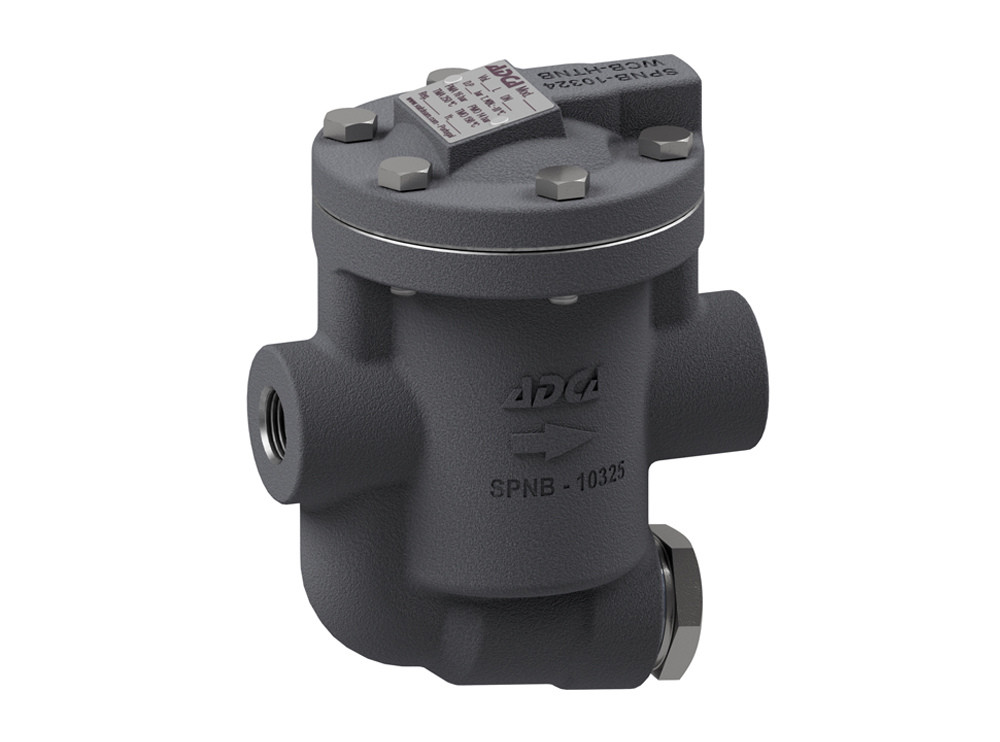

Product code: IB12
Inverted bucket steam trap ADCA IB12
- Application

  Saturated and superheated steam,
  steam condensate
- Body material

  Ductile iron
- Max. operating pressure

  14 bar
- Max. operating temperature

  198 ºC
- Flow rate capacity

  Up to 530 kg/h
- Differential pressure

  Delta P: 4, 8 and 12 bar
- Connections

  Female threaded ISO 7 Rp (NPT on request),
  Screw-on flanges EN 1092-2 PN 16 on request,
  Screw-on flanges ASME B16.42 Class 150 on request
- Face to face distance

  With socket threaded (F/F - 130mm),
  With screw-on flanges (F/F - 175mm)
Dimension:
1/2” – 3/4”; DN15 – DN20

Price according to configuration

Available to Order
More about the product
Valsteam ADCA

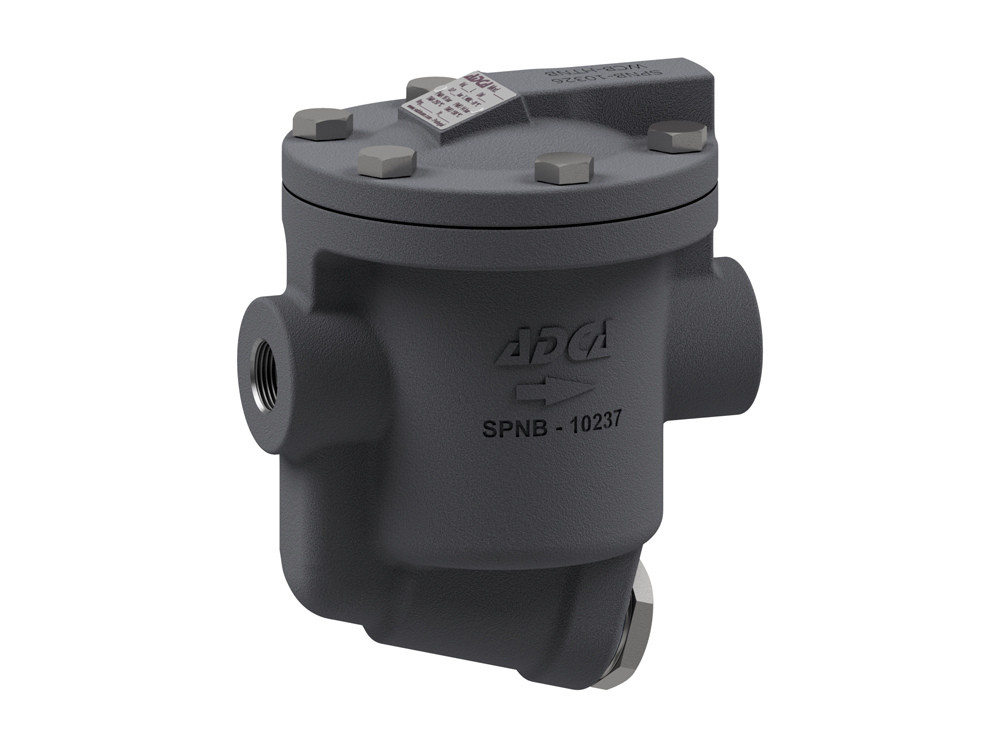

Product code: IBB12
Inverted bucket steam trap ADCA IBB12
- Application

  Saturated and superheated steam,
  steam condensate
- Body material

  Ductile iron
- Max. operating pressure

  14 bar
- Max. operating temperature

  198 ºC
- Flow rate capacity

  Up to 1670 kg/h
- Differential pressure

  Delta P: 4, 8 and 12 bar
- Connections

  Female threaded ISO 7 Rp (NPT on request),
  Screw-on flanges EN 1092-2 PN 16 on request,
  Screw-on flanges ASME B16.42 Class 150 on request
- Face to face distance

  With socket threaded (F/F - 175mm),
  With screw-on flanges (F/F - 222mm)
Dimension:
3/4” – 1”; DN20 – DN25

Price according to configuration

Available to Order
More about the product
Valsteam ADCA

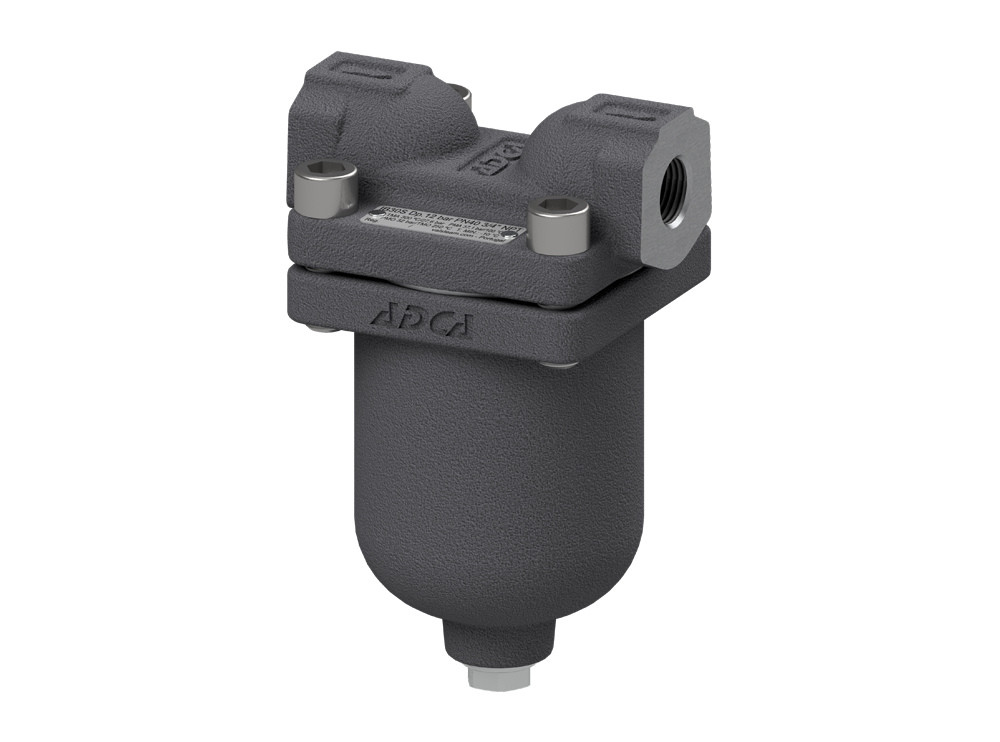

Product code: IB30S
Inverted bucket steam trap ADCA IB30S
- Application

  Saturated and superheated steam,
  steam condensate
- Body material

  Carbon steel
- Max. operating pressure

  17 bar
- Max. operating temperature

  300 ºC
- Flow rate capacity

  Up to 530 kg/h
- Differential pressure

  Delta P: 4, 8, 12 and 17 bar
- Connections

  Female threaded ISO 7 Rp (NPT on request),
  Socket weld (SW) ASME 16.11 on request,
  Butt weld (BW) ASME B16.25 on request
Dimension:
1/2” – 1”

Price according to configuration

Available on request
More about the product
Valsteam ADCA

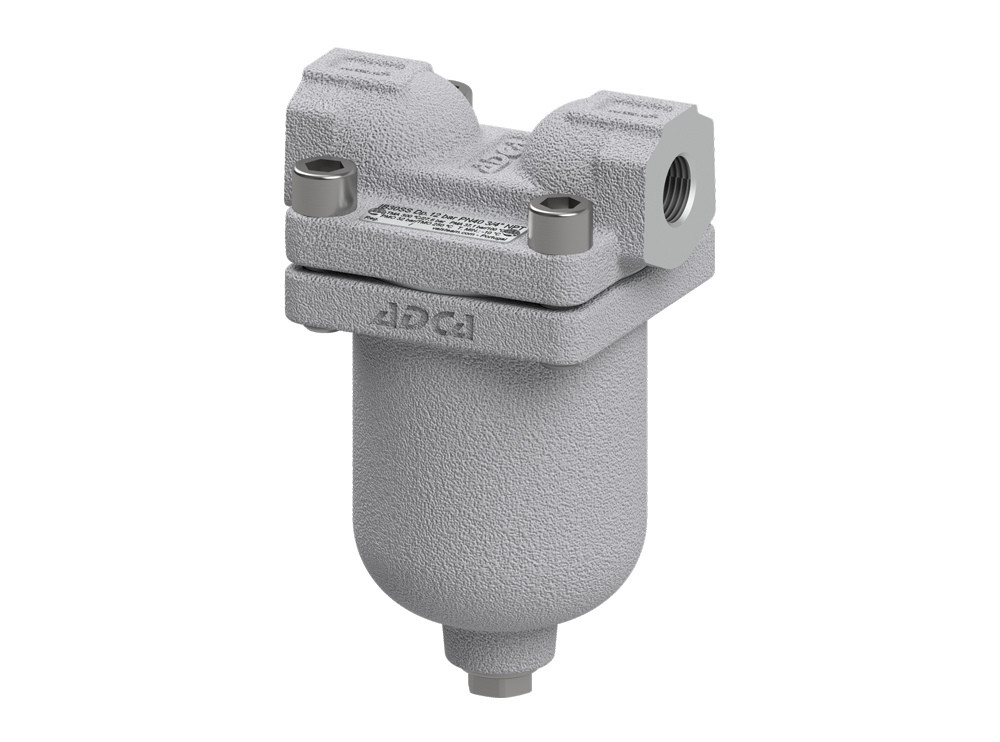

Product code: IB30SS
Inverted bucket steam trap ADCA IB30SS
- Application

  Saturated and superheated steam,
  steam condensate
- Body material

  Stainless steel
- Max. operating pressure

  17 bar
- Max. operating temperature

  400 ºC
- Flow rate capacity

  Up to 530 kg/h
- Differential pressure

  Delta P: 4, 8, 12 and 17 bar
- Connections

  Female threaded ISO 7 Rp (NPT on request),
  Socket weld (SW) ASME 16.11 on request,
  Butt weld (BW) ASME B16.25 on request
Dimension:
1/2”–1”

Price according to configuration

Available on request
More about the product
Valsteam ADCA

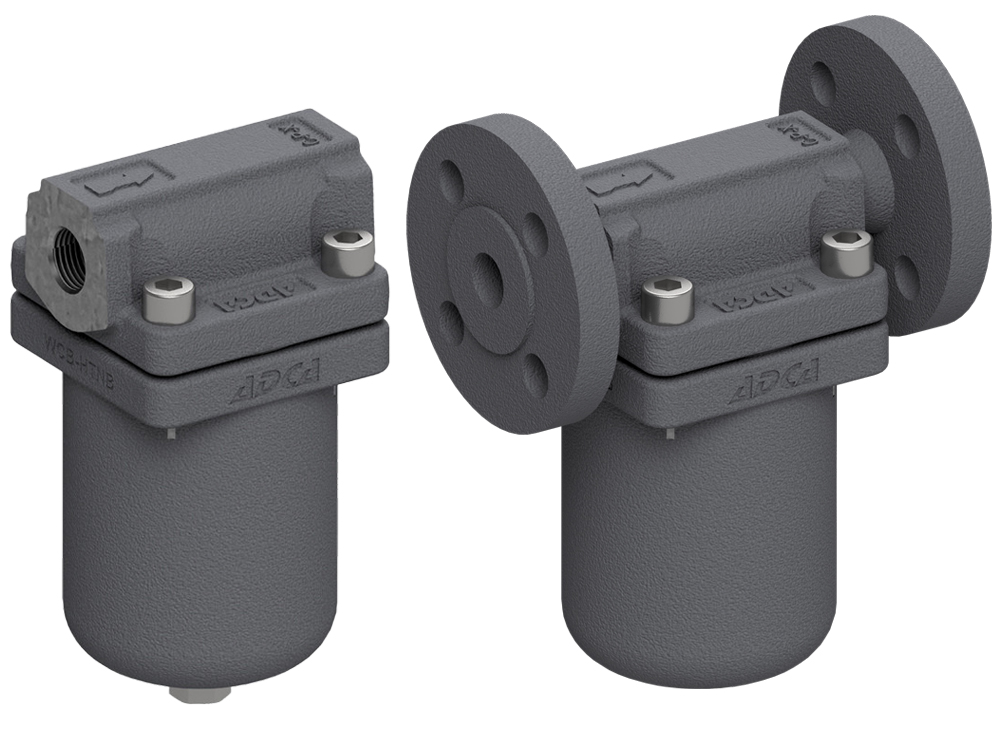

Product code: IB36S
Inverted bucket steam trap ADCA IB36S
- Application

  Saturated and superheated steam,
  steam condensate
- Body material

  Carbon steel
- Max. operating pressure

  41,6 bar
- Max. operating temperature

  400 ºC
- Flow rate capacity

  Up to 610 kg/h
- Differential pressure

  Delta P: 5, 10, 15, 30 and 40 bar
- Connections

  Female threaded ISO 7 Rp (NPT on request),
  Flanged EN 1092-1 PN 40,
  Flanged ASME B16.5 Class 150 or 300 on request,
  Socket weld (SW) ASME B16.11 on request,
  Butt weld (BW) ASME B16.25 on request
Dimension:
1/2” – 1”; DN15 – DN25

Price according to configuration

Available on request
More about the product
Valsteam ADCA

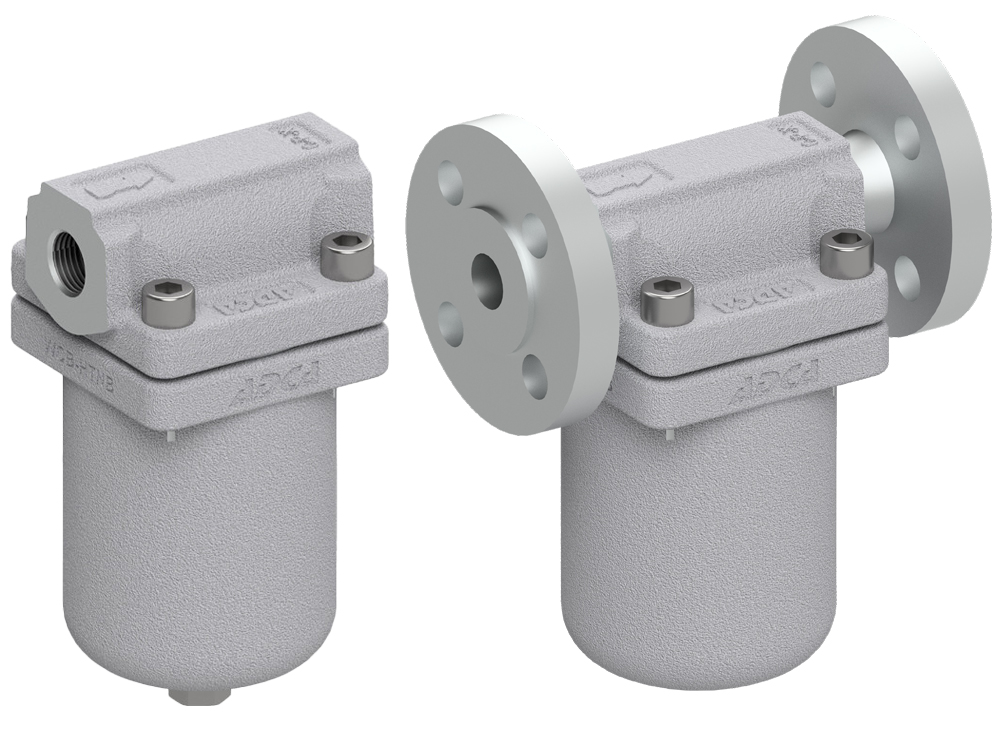

Product code: IB36i
Inverted bucket steam trap ADCA IB36i
- Application

  Saturated and superheated steam,
  steam condensate
- Body material

  Stainless steel
- Max. operating pressure

  27 bar
- Max. operating temperature

  400 ºC
- Flow rate capacity

  Up to 610 kg/h
- Differential pressure

  Delta P: 5, 10, 15 and 27 bar
- Connections

  Female threaded ISO 7 Rp (NPT on request),
  Flanged EN 1092-1 PN 40,
  Flanged ASME B16.5 Class 150 or 300 on request,
  Socket weld (SW) ASME B16.11 on request,
  Butt weld (BW) ASME B16.25 on request
Dimension:
1/2” – 1”; DN15 – DN25

Price according to configuration

Available on request
More about the product
Valsteam ADCA

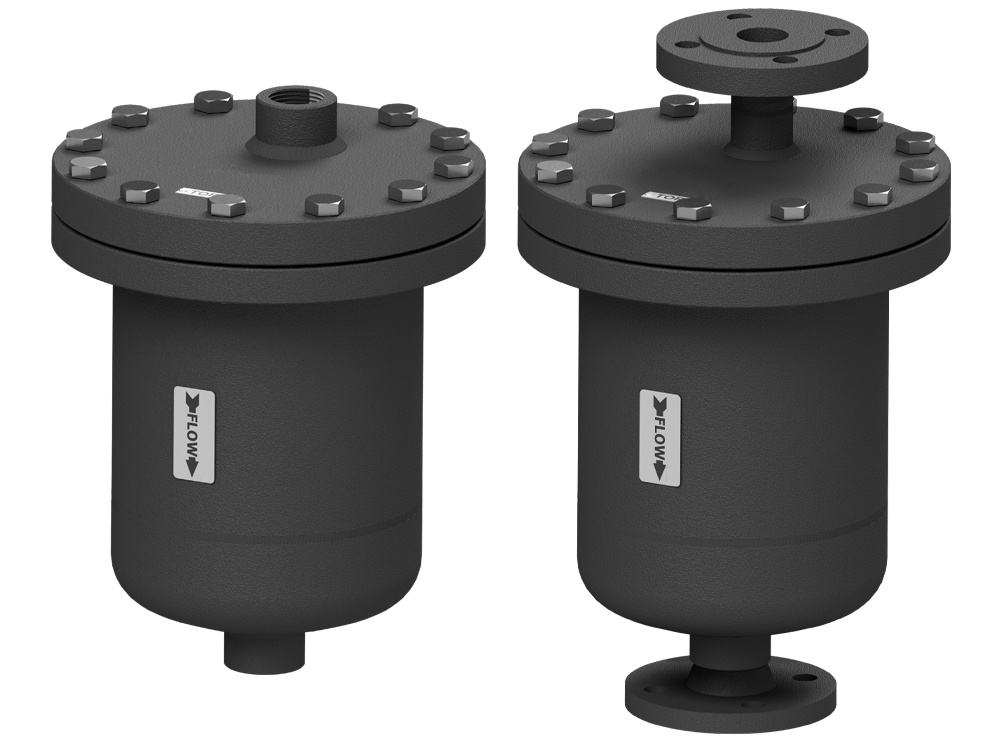

Product code: IB30S.IT
Inverted bucket steam trap ADCA IB30S
- Application

  Saturated and superheated steam,
  steam condensate
- Body material

  Carbon steel
- Max. operating pressure

  17 bar
- Max. operating temperature

  220 ºC
- Flow rate capacity

  Up to 3700 kg/h
- Differential pressure

  Delta P: 4, 8 and 12 bar
- Connections

  Female threaded ISO 7 Rp (NPT on request),
  Flanged EN 1092-1 PN 25,
  Flanged ASME B16.5 Class 150 or 300 on request,
  Socket weld (SW) ASME 16.11 on request,
  Butt weld (BW) ASME B16.25 on request
Dimension:
1.1/2” – 2”; DN40 – DN50

Price according to configuration

Available on request
More about the product
Valsteam ADCA

Product code: IB30SS.IT
Inverted bucket steam trap ADCA IB30SS
- Application

  Saturated and superheated steam,
  steam condensate
- Body material

  Stainless steel
- Max. operating pressure

  17 bar
- Max. operating temperature

  220 ºC
- Flow rate capacity

  Up to 3700 kg/h
- Differential pressure

  Delta P: 4, 8 and 12 bar
- Connections

  Female threaded ISO 7 Rp (NPT on request),
  Flanged EN 1092-1 PN 25,
  Flanged ASME B16.5 Class 150 or 300 on request,
  Socket weld (SW) ASME 16.11 on request,
  Butt weld (BW) ASME B16.25 on request
Dimension:
1.1/2” – 2”; DN40 – DN50

Price according to configuration

Available on request
