Inverted bucket steam trap ADCA IB36i

Specifications

  • Application

    Saturated and superheated steam,
    steam condensate

  • Body material

    Stainless steel

  • Max. operating pressure

    27 bar

  • Max. operating temperature

    400 ºC

  • Flow rate capacity

    Up to 610 kg/h

  • Differential pressure

    Delta P: 5, 10, 15 and 27 bar

  • Connections

    Female threaded ISO 7 Rp (NPT on request),
    Flanged EN 1092-1 PN 40,
    Flanged ASME B16.5 Class 150 or 300 on request,
    Socket weld (SW) ASME B16.11 on request,
    Butt weld (BW) ASME B16.25 on request

Inverted bucket steam trap ADCA IB36i

Product code: IB36i

Available on request

Price according to configuration

Choose your configuration
Choose on Option...
  • Threaded
  • Flanged
Choose on Option...
  • 1/2"
  • 3/4"
  • 1"
  • 15
  • 20
  • 25
Choose on Option...
  • 5 bar
  • 10 bar
  • 15 bar
  • 27 bar
See all configuration
Ref.#.
ex. VAT
(INDICATIVE PRICE)

Quantity

-
+

No ready-made solution

The selected configuration has been added to the cart

Go to quotation request

See all configurations

Model Connection Size Differential pressure Ref Price Quantity
Inverted bucket steam trap ADCA IB36i DN15 DP=5 bar Flanged 15 5 bar A.35.5112.015 €509.50
-
+
Inverted bucket steam trap ADCA IB36i DN25 DP=27 bar Flanged 25 27 bar A.35.5115.025 €645.80
-
+
Inverted bucket steam trap ADCA IB36i DN20 DP=27 bar Flanged 20 27 bar A.35.5115.020 €527.60
-
+
Inverted bucket steam trap ADCA IB36i DN15 DP=27 bar Flanged 15 27 bar A.35.5115.015 €509.50
-
+
Inverted bucket steam trap ADCA IB36i DN25 DP=15 bar Flanged 25 15 bar A.35.5114.025 €645.80
-
+
Inverted bucket steam trap ADCA IB36i DN20 DP=15 bar Flanged 20 15 bar A.35.5114.020 €527.60
-
+
Inverted bucket steam trap ADCA IB36i DN15 DP=15 bar Flanged 15 15 bar A.35.5114.015 €509.50
-
+
Inverted bucket steam trap ADCA IB36i DN25 DP=10 bar Flanged 25 10 bar A.35.5113.025 €645.80
-
+
Inverted bucket steam trap ADCA IB36i DN20 DP=10 bar Flanged 20 10 bar A.35.5113.020 €527.60
-
+
Inverted bucket steam trap ADCA IB36i DN15 DP=10 bar Flanged 15 10 bar A.35.5113.015 €509.50
-
+
Inverted bucket steam trap ADCA IB36i DN25 DP=5 bar Flanged 25 5 bar A.35.5112.025 €645.80
-
+
Inverted bucket steam trap ADCA IB36i DN20 DP=5 bar Flanged 20 5 bar A.35.5112.020 €527.60
-
+
Inverted bucket steam trap ADCA IB36i BSP 1/2" DP=5 bar Threaded 1/2" 5 bar A.35.5102.015 €291.10
-
+
Inverted bucket steam trap ADCA IB36i BSP 1" DP=27 bar Threaded 1" 27 bar A.35.5105.025 €411.90
-
+
Inverted bucket steam trap ADCA IB36i BSP 3/4" DP=27 bar Threaded 3/4" 27 bar A.35.5105.020 €291.10
-
+
Inverted bucket steam trap ADCA IB36i BSP 1/2" DP=27 bar Threaded 1/2" 27 bar A.35.5105.015 €291.10
-
+
Inverted bucket steam trap ADCA IB36i BSP 1" DP=15 bar Threaded 1" 15 bar A.35.5104.025 €411.90
-
+
Inverted bucket steam trap ADCA IB36i BSP 3/4" DP=15 bar Threaded 3/4" 15 bar A.35.5104.020 €291.10
-
+
Inverted bucket steam trap ADCA IB36i BSP 1/2" DP=15 bar Threaded 1/2" 15 bar A.35.5104.015 €291.10
-
+
Inverted bucket steam trap ADCA IB36i BSP 1" DP=10 bar Threaded 1" 10 bar A.35.5103.025 €411.90
-
+
Inverted bucket steam trap ADCA IB36i BSP 3/4" DP=10 bar Threaded 3/4" 10 bar A.35.5103.020 €291.10
-
+
Inverted bucket steam trap ADCA IB36i BSP 1/2" DP=10 bar Threaded 1/2" 10 bar A.35.5103.015 €291.10
-
+
Inverted bucket steam trap ADCA IB36i BSP 1" DP=5 bar Threaded 1" 5 bar A.35.5102.025 €411.90
-
+
Inverted bucket steam trap ADCA IB36i BSP 3/4" DP=5 bar Threaded 3/4" 5 bar A.35.5102.020 €291.10
-
+

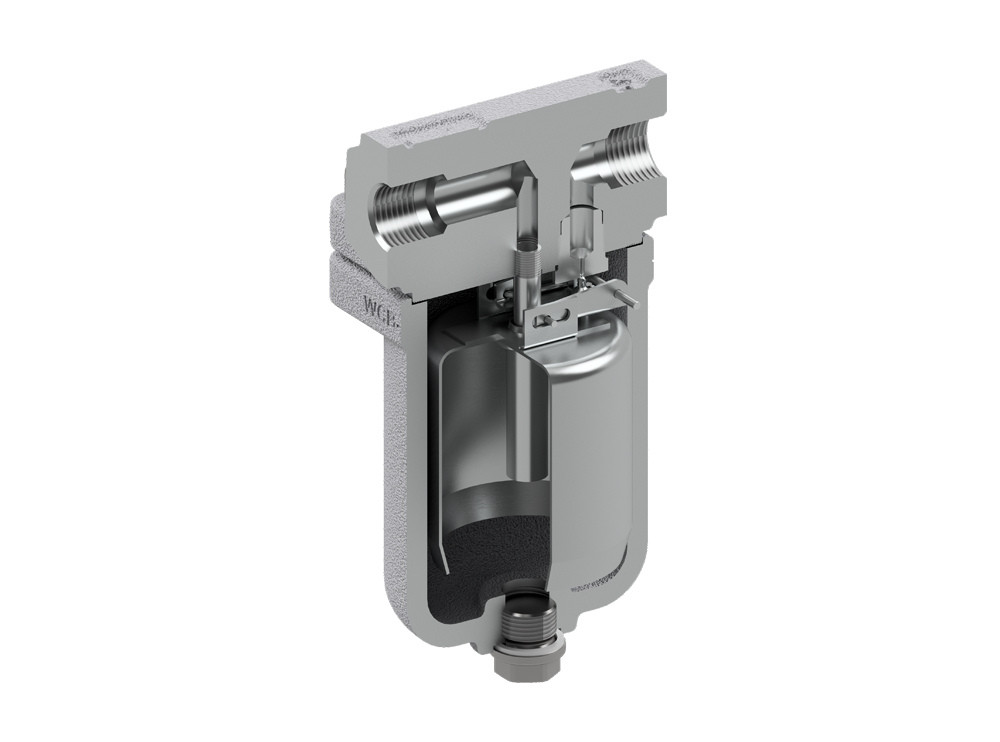

The IB36i is a series of robust and versatile inverted bucket steam traps manufactured in stainless steel. These steam traps operate intermittently, and are suitable for use with low to high pressure saturated or superheated steam. Typical applications include drip points, steam tracing lines, dryers, chemical and laundry equipment.
