Valsteam ADCA
Specifications
-
Application
Saturated steam,
steam condensate -
Body material
Carbon steel
-
Max. operating pressure
21 bar
-
Max. operating temperature
250 ºC
-
Flow rate capacity
Up to 795 kg/h
-
Differential pressure
Delta P: 21 bar
-
Type thermostat
Thermostats for different sub coolings 10 ºC (standard type S thermostat),
Thermostats for 5 ºC (type H) and 30 ºC (type L) also available -
Connections
Female threaded ISO 7 Rp (NPT on request),
Flanged EN 1092-1 PN 25,
Flanged ASME B16.5 Class 150 on request,
Socket weld (SW) ASME B16.11 on request,
Butt weld (BW) ASME B16.25 on request

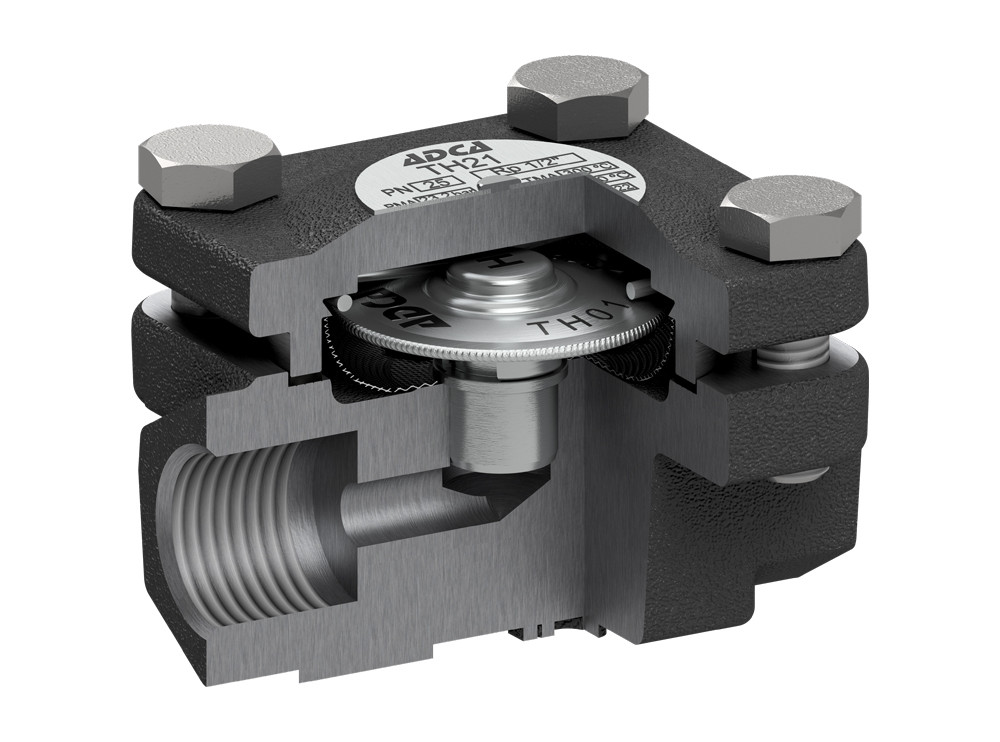

Thermostatic steam trap ADCA TH21
Product code: TH21
Available on request
Price according to configuration
Choose your configuration
- Threaded
- Flanged
- 1/2"
- 15
- 10 ºC (type S)
- 5 ºC (type H)
- 30 ºC (type L)
See all configuration
Ref.#.
ex. VAT
(INDICATIVE PRICE)
Quantity
-
+
