Thermostatic steam traps

Refine

Show:
10 per page
  • 10 products per page
  • 25 products per page
  • 50 products per page
Sort:
Relevance
  • Relevance
  • Created at
  • Product code
  • Name
  • Available

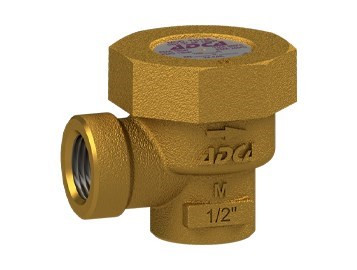

  • Valsteam ADCA

    TH13A

    Product code: TH13A

    Thermostatic steam trap ADCA TH13A

    • Application

      Saturated steam,
      steam condensate

    • Body material

      Brass

    • Max. operating pressure

      13 bar

    • Max. operating temperature

      200 ºC

    • Flow rate capacity

      Up to 360 kg/h

    • Differential pressure

      Delta P: 13 bar

    • Type thermostat

      Thermostats for different sub coolings 10 ºC (standard type S thermostat),
      Thermostats for 5 ºC (type H) and 30 ºC (type L) also available

    • Connections

      Female threaded ISO 7 Rp

    Dimension:
    1/2”; DN15
    Price according to configuration
    Available to Order
    More about the product

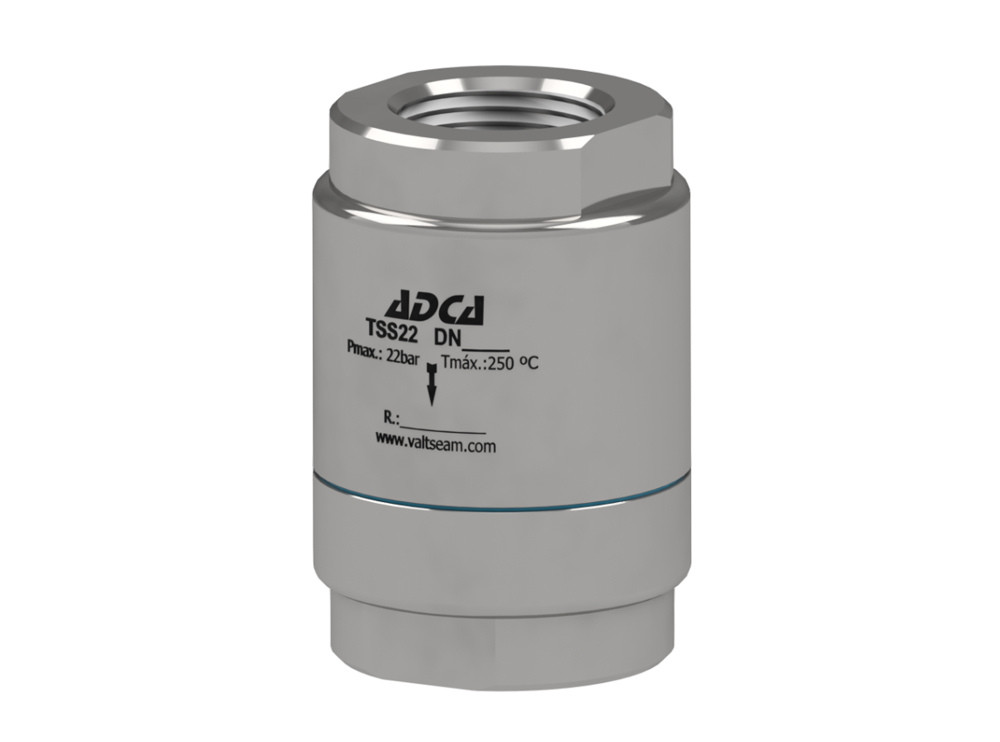

  • Valsteam ADCA

    TSS22

    Product code: TSS22

    Thermostatic steam trap ADCA TSS22

    • Application

      Saturated steam,
      steam condensate

    • Body material

      Stainless steel

    • Max. operating pressure

      22 bar

    • Max. operating temperature

      250 ºC

    • Flow rate capacity

      Up to 415 kg/h

    • Differential pressure

      Delta P: 22 bar

    • Type thermostat

      Thermostats for different sub coolings 10 ºC (standard type S thermostat),
      Thermostats for 5 ºC (type H) and 30 ºC (type L) also available

    • Connections

      Female threaded ISO 7 Rp (NPT on request)

    Dimension:
    1/4” – 1”
    Price according to configuration
    Available to Order
    More about the product

  • Valsteam ADCA

    TSS22H

    Product code: TSS22H

    Thermostatic steam trap ADCA TSS22H (High Capacity)

    • Application

      Saturated steam,
      steam condensate

    • Body material

      Stainless steel

    • Max. operating pressure

      22 bar

    • Max. operating temperature

      250 ºC

    • Flow rate capacity

      Up to 795 kg/h

    • Differential pressure

      Delta P: 22 bar

    • Type thermostat

      Thermostats for different sub coolings 10 ºC (standard type S thermostat),
      Thermostats for 5 ºC (type H) and 30 ºC (type L) also available

    • Connections

      Female threaded ISO 7 Rp (NPT on request)

    Dimension:
    1/2” – 1”
    Price according to configuration
    Available on request
    More about the product

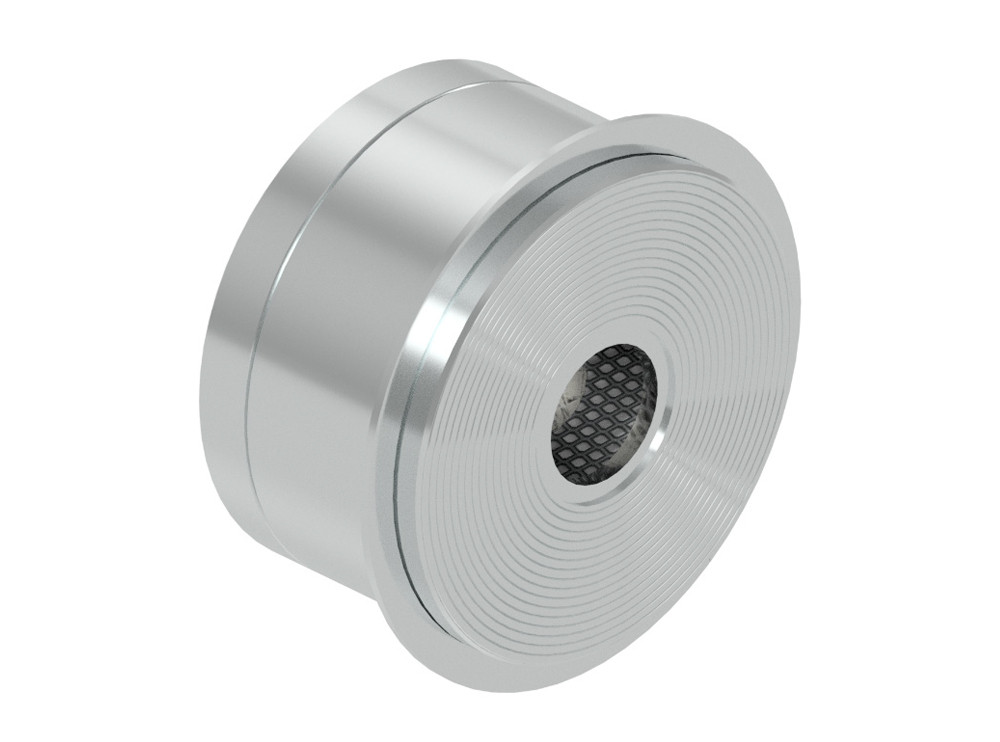

  • Valsteam ADCA

    TSW22

    Product code: TSW22

    Thermostatic steam trap ADCA TSW22

    • Application

      Saturated steam,
      steam condensate

    • Body material

      Stainless steel (Wafer Design)

    • Max. operating pressure

      22 bar

    • Max. operating temperature

      250 ºC

    • Flow rate capacity

      Up to 795 kg/h

    • Differential pressure

      Delta P: 22 bar

    • Type thermostat

      Thermostats for different sub coolings 10 ºC (standard type S thermostat),
      Thermostats for 5 ºC (type H) and 30 ºC (type L) also available

    • Connections

      Sandwiched between flanges as per EN 1092-1 PN 16 or PN 40

    Dimension:
    DN15 – DN25
    Price according to configuration
    Available on request
    More about the product

  • Valsteam ADCA

    TH21

    Product code: TH21

    Thermostatic steam trap ADCA TH21

    • Application

      Saturated steam,
      steam condensate

    • Body material

      Carbon steel

    • Max. operating pressure

      21 bar

    • Max. operating temperature

      250 ºC

    • Flow rate capacity

      Up to 795 kg/h

    • Differential pressure

      Delta P: 21 bar

    • Type thermostat

      Thermostats for different sub coolings 10 ºC (standard type S thermostat),
      Thermostats for 5 ºC (type H) and 30 ºC (type L) also available

    • Connections

      Female threaded ISO 7 Rp (NPT on request),
      Flanged EN 1092-1 PN 25,
      Flanged ASME B16.5 Class 150 on request,
      Socket weld (SW) ASME B16.11 on request,
      Butt weld (BW) ASME B16.25 on request

    Dimension:
    1/2"; DN15
    Price according to configuration
    Available on request
    More about the product

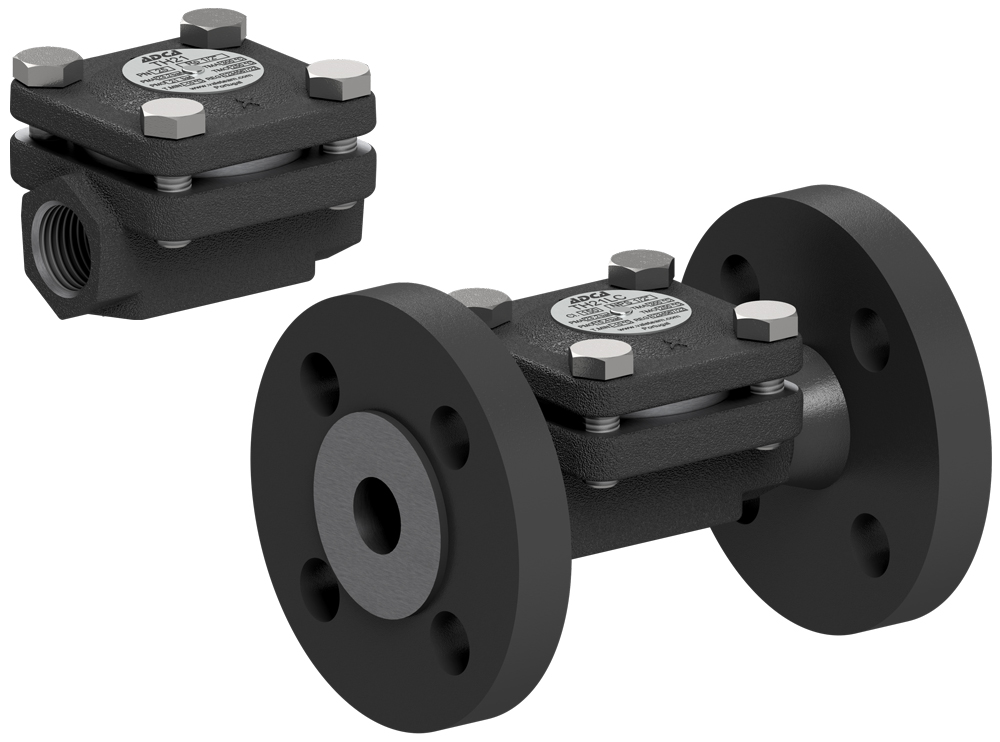

  • Valsteam ADCA

    TH21LC

    Product code: TH21LC

    Thermostatic steam trap ADCA TH21LC (Low Capacity)

    • Application

      Saturated steam,
      steam condensate

    • Body material

      Carbon steel

    • Max. operating pressure

      21 bar

    • Max. operating temperature

      250 ºC

    • Flow rate capacity

      Up to 415 kg/h

    • Differential pressure

      Delta P: 21 bar

    • Type thermostat

      Thermostats for different sub coolings 10 ºC (standard type S thermostat),
      Thermostats for 5 ºC (type H) and 30 ºC (type L) also available

    • Connections

      Female threaded ISO 7 Rp (NPT on request),
      Flanged EN 1092-1 PN 25,
      Flanged ASME B16.5 Class 150 on request,
      Socket weld (SW) ASME B16.11 on request,
      Butt weld (BW) ASME B16.25 on request

    Dimension:
    1/2"; DN15
    Price according to configuration
    Available on request
    More about the product

  • Valsteam ADCA

    TH32Y

    Product code: TH32Y

    Thermostatic steam trap ADCA TH32Y

    • Application

      Saturated steam,
      steam condensate

    • Body material

      Carbon steel

    • Max. operating pressure

      22 bar

    • Max. operating temperature

      250 ºC

    • Flow rate capacity

      Up to 795 kg/h

    • Differential pressure

      Delta P: 22 bar

    • Type thermostat

      Thermostats for different sub coolings 10 ºC (standard type S thermostat),
      Thermostats for 5 ºC (type H) and 30 ºC (type L) also available

    • Connections

      Female threaded ISO 7 Rp (NPT on request),
      Flanged EN 1092-1 PN 40,
      Flanged ASME B16.5 Class 150 or 300 on request,
      Socket weld (SW) ASME B16.11 on request,
      Butt weld (BW) ASME B16.25 on request

    • Options

      Suffix “CK”: Version with integrated check valve

    Dimension:
    1/2” – 1”; DN15 – DN25
    Price according to configuration
    Available on request
    More about the product

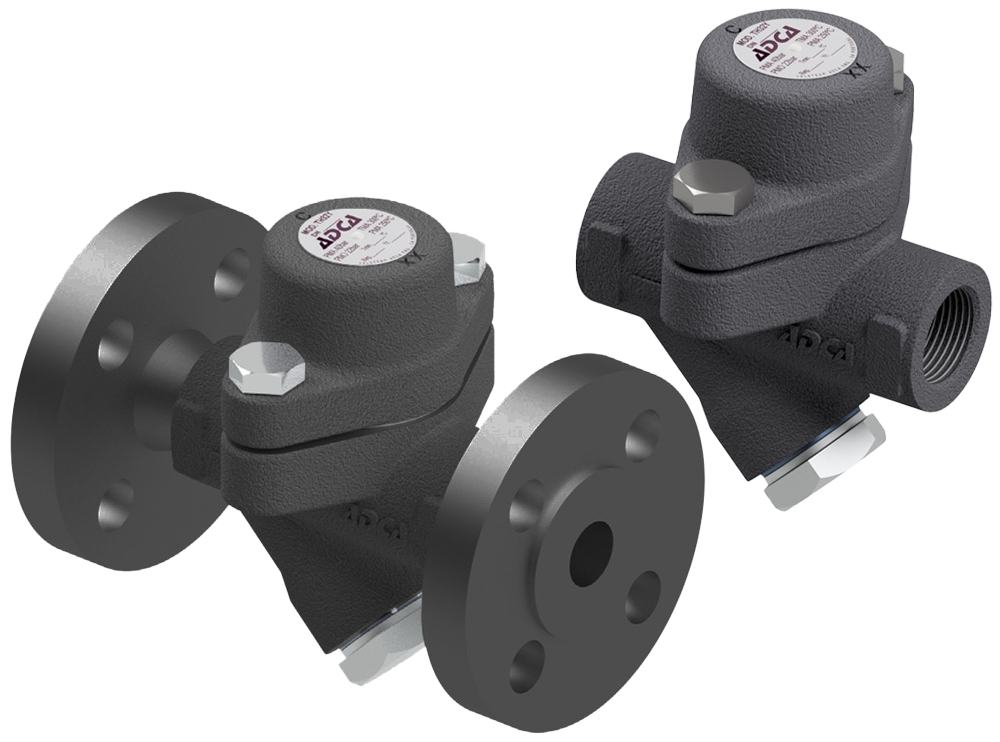

  • Valsteam ADCA

    TH32YLC

    Product code: TH32YLC

    Thermostatic steam trap ADCA TH32YLC (Low Capacity)

    • Application

      Saturated steam,
      steam condensate

    • Body material

      Carbon steel

    • Max. operating pressure

      22 bar

    • Max. operating temperature

      250 ºC

    • Flow rate capacity

      Up to 415 kg/h

    • Differential pressure

      Delta P: 22 bar

    • Type thermostat

      Thermostats for different sub coolings 10 ºC (standard type S thermostat),
      Thermostats for 5 ºC (type H) and 30 ºC (type L) also available

    • Connections

      Female threaded ISO 7 Rp (NPT on request),
      Flanged EN 1092-1 PN 40,
      Flanged ASME B16.5 Class 150 or 300 on request,
      Socket weld (SW) ASME B16.11 on request,
      Butt weld (BW) ASME B16.25 on request

    Dimension:
    1/2” – 1”; DN15 – DN25
    Price according to configuration
    Available on request
    More about the product

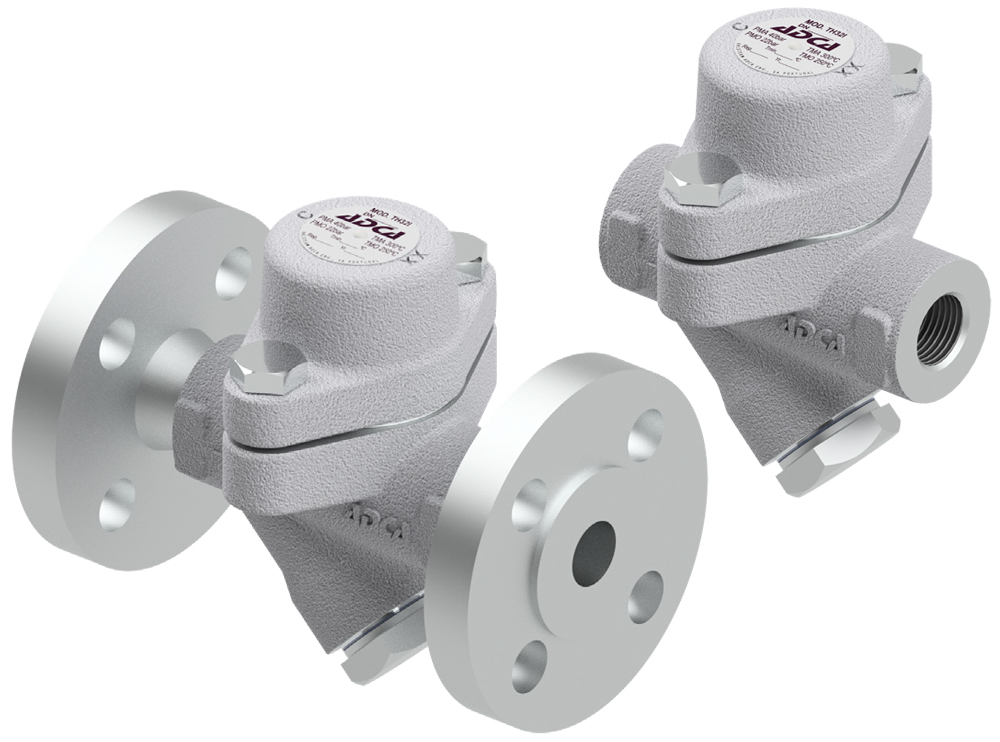

  • Valsteam ADCA

    TH32i

    Product code: TH32i

    Thermostatic steam trap ADCA TH32i

    • Application

      Saturated steam,
      steam condensate

    • Body material

      Stainless steel

    • Max. operating pressure

      22 bar

    • Max. operating temperature

      250 ºC

    • Flow rate capacity

      Up to 795 kg/h

    • Differential pressure

      Delta P: 22 bar

    • Type thermostat

      Thermostats for different sub coolings 10 ºC (standard type S thermostat),
      Thermostats for 5 ºC (type H) and 30 ºC (type L) also available

    • Connections

      Female threaded ISO 7 Rp (NPT on request),
      Flanged EN 1092-1 PN 40,
      Flanged ASME B16.5 Class 150 or 300 on request,
      Socket weld (SW) ASME B16.11 on request,
      Butt weld (BW) ASME B16.25 on request

    • Options

      Suffix “CK”: Version with integrated check valve

    Dimension:
    1/2” – 1”; DN15 – DN25
    Price according to configuration
    Available on request
    More about the product

  • Valsteam ADCA

    TH32iLC

    Product code: TH32iLC

    Thermostatic steam trap ADCA TH32iLC (Low Capacity)

    • Application

      Saturated steam,
      steam condensate

    • Body material

      Stainless steel

    • Max. operating pressure

      22 bar

    • Max. operating temperature

      250 ºC

    • Flow rate capacity

      Up to 415 kg/h

    • Differential pressure

      Delta P: 22 bar

    • Type thermostat

      Thermostats for different sub coolings 10 ºC (standard type S thermostat),
      Thermostats for 5 ºC (type H) and 30 ºC (type L) also available

    • Connections

      Female threaded ISO 7 Rp (NPT on request),
      Flanged EN 1092-1 PN 40,
      Flanged ASME B16.5 Class 150 or 300 on request,
      Socket weld (SW) ASME B16.11 on request,
      Butt weld (BW) ASME B16.25 on request

    Dimension:
    1/2” – 1”; DN15 – DN25
    Price according to configuration
    Available on request
    More about the product
