Valsteam ADCA

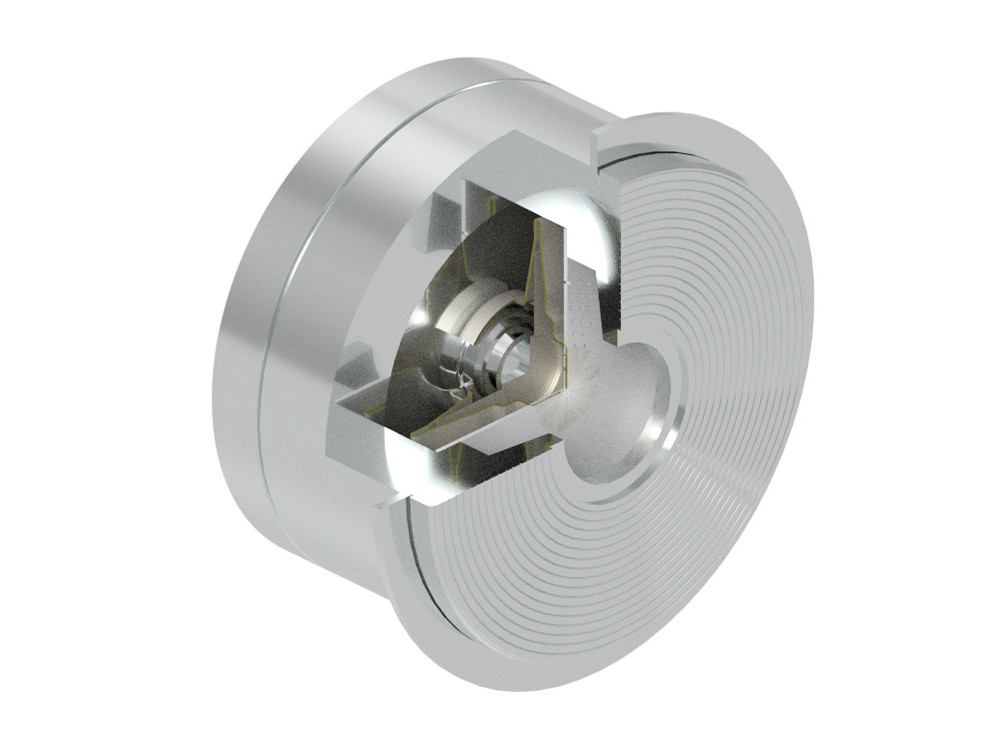

Thermostatic steam trap ADCA TSW22

Specifications

  • Application

    Saturated steam,
    steam condensate

  • Body material

    Stainless steel (Wafer Design)

  • Max. operating pressure

    22 bar

  • Max. operating temperature

    250 ºC

  • Flow rate capacity

    Up to 795 kg/h

  • Differential pressure

    Delta P: 22 bar

  • Type thermostat

    Thermostats for different sub coolings 10 ºC (standard type S thermostat),
    Thermostats for 5 ºC (type H) and 30 ºC (type L) also available

  • Connections

    Sandwiched between flanges as per EN 1092-1 PN 16 or PN 40

Thermostatic steam trap ADCA TSW22

Product code: TSW22

Available on request

Price according to configuration

Choose your configuration
Choose on Option...
  • 15
  • 20
  • 25
Choose on Option...
  • 10 ºC (type S)
  • 5 ºC (type H)
  • 30 ºC (type L)
See all configuration
Ref.#.
ex. VAT
(INDICATIVE PRICE)

Quantity

-
+

No ready-made solution

The selected configuration has been added to the cart

Go to quotation request

See all configurations

Model Size Type thermostat Ref Price Quantity
Thermostatic steam trap ADCA TSW22 DN15 dT=10°C 15 10 ºC (type S) A.42.6150.015 €152.30
-
+
Thermostatic steam trap ADCA TSW22 DN15 dT=5°C 15 5 ºC (type H) A.42.6150.015H €152.30
-
+
Thermostatic steam trap ADCA TSW22 DN15 dT=30°C 15 30 ºC (type L) A.42.6150.015L €152.30
-
+
Thermostatic steam trap ADCA TSW22 DN20 dT=10°C 20 10 ºC (type S) A.42.6150.020 €152.30
-
+
Thermostatic steam trap ADCA TSW22 DN20 dT=5°C 20 5 ºC (type H) A.42.6150.020H €152.30
-
+
Thermostatic steam trap ADCA TSW22 DN20 dT=30°C 20 30 ºC (type L) A.42.6150.020L €152.30
-
+
Thermostatic steam trap ADCA TSW22 DN25 dT=10°C 25 10 ºC (type S) A.42.6150.025 €256.20
-
+
Thermostatic steam trap ADCA TSW22 DN25 dT=5°C 25 5 ºC (type H) A.42.6150.025H €256.20
-
+
Thermostatic steam trap ADCA TSW22 DN25 dT=30°C 25 30 ºC (type L) A.42.6150.025L €256.20
-
+

The TSW22 all stainless steel thermostatic steam traps and air eliminators are specifically designed for use on process equipment such as kettle cookers, sterilizers, food, chemical and laundry equipment. Their small size makes them ideal for use with a wide variety of this equipment.
