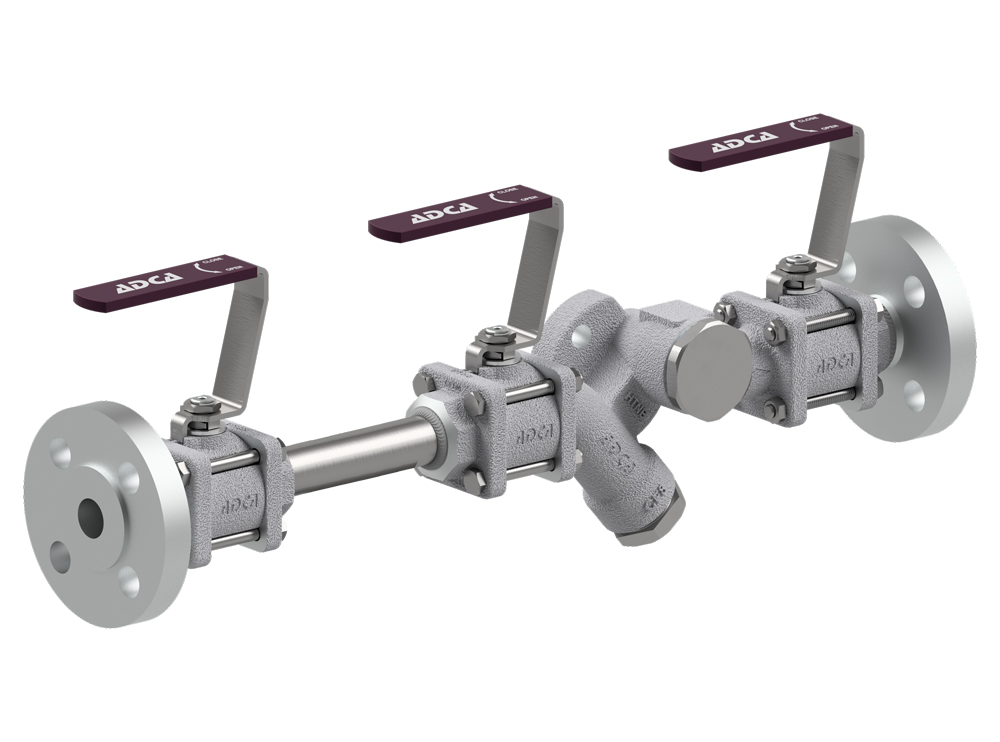

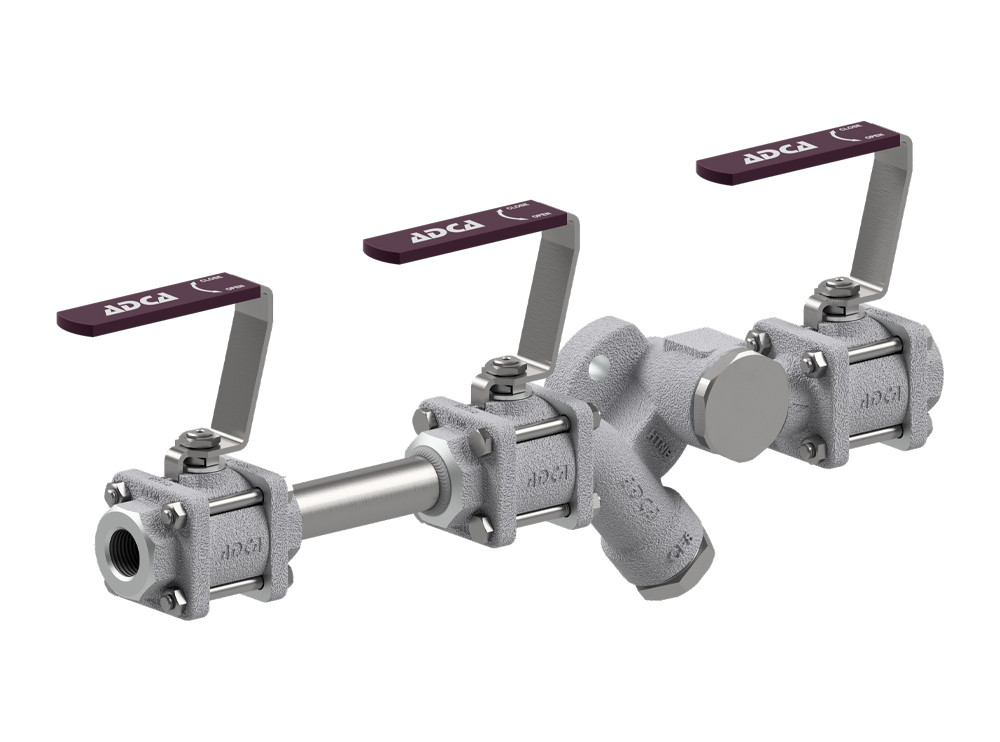

Compact universal trap station ADCA CTS4UD with double inlet shut-off valves

Specifications

Application

Saturated and superheated steam,
steam condensate
Body material

Stainless steel A351 CF8
Available model

CTS4UD - Incl. double block at the inlet
Max. pressure for saturated steam

17,5 bar
Max. operating temperature

230 ºC @ 10 bar
Min. operating temperature

-10 ºC
Universal connector

fits the two-bolt flange swivel connection steam traps
Connections

Female threaded ISO 7 Rp (NPT on request),
Flanged EN 1092-1 PN 40,
Flanged ASME B16.5 Class 150 or 300 on request

Compact universal trap station ADCA CTS4UD with double inlet shut-off valves

Product code: CTS4UD

Available on request

Price according to configuration

Choose your configuration

Connection *

Choose on Option...

Threaded
Flanged

Size *

Choose on Option...

1/2"
3/4"
1"
15
20
25

Universal connector *

Choose on Option...

two-bolt flange

See all configuration

Ref.#.

ex. VAT

(INDICATIVE PRICE)

Quantity

No ready-made solution

See all configurations

The CTS4U is designed as a complete and compact steam trap station, to be used in steam systems where a simplified and economic maintenance program is desired. It has been designed to replace the traditional multi-component trap station systems. Typical installations are drip service on steam lines, tracing and small process equipment. Two-bolt flange connector permits trap replacement in minutes without disturbing the piping. The CTS4U trapping station fits all universal swivel connector steam traps.
