Universal steam traps and connectors bolted

Show:

10 per page

10 products per page
25 products per page
50 products per page

Sort:

Relevance

Relevance
Created at
Product code
Name
Available

Valsteam ADCA

Product code: UCX41
Universal pipeline connector ADCA UCX41 two-bolt connection steam traps
- Application

  Saturated and superheated steam,
  steam condensate
- Body material

  Stainless steel A351 CF8
- Max. allowable pressure

  47,8 bar
- Max. allowable temperature

  400 ºC
- Universal connector

  fits the two-bolt flange swivel connection steam traps
- Connections

  Female threaded ISO 7 Rp (NPT on request),
  Flanged EN 1092-1 PN 40,
  Flanged ASME B16.5 Class 150 or 300 on request,
  Socket weld (SW) ASME B16.11 on request,
  Butt weld (BW) ASME B16.25 on request
Dimension:
1/2” – 1”; DN15 – DN25

Price according to configuration

Available on request
More about the product
Valsteam ADCA

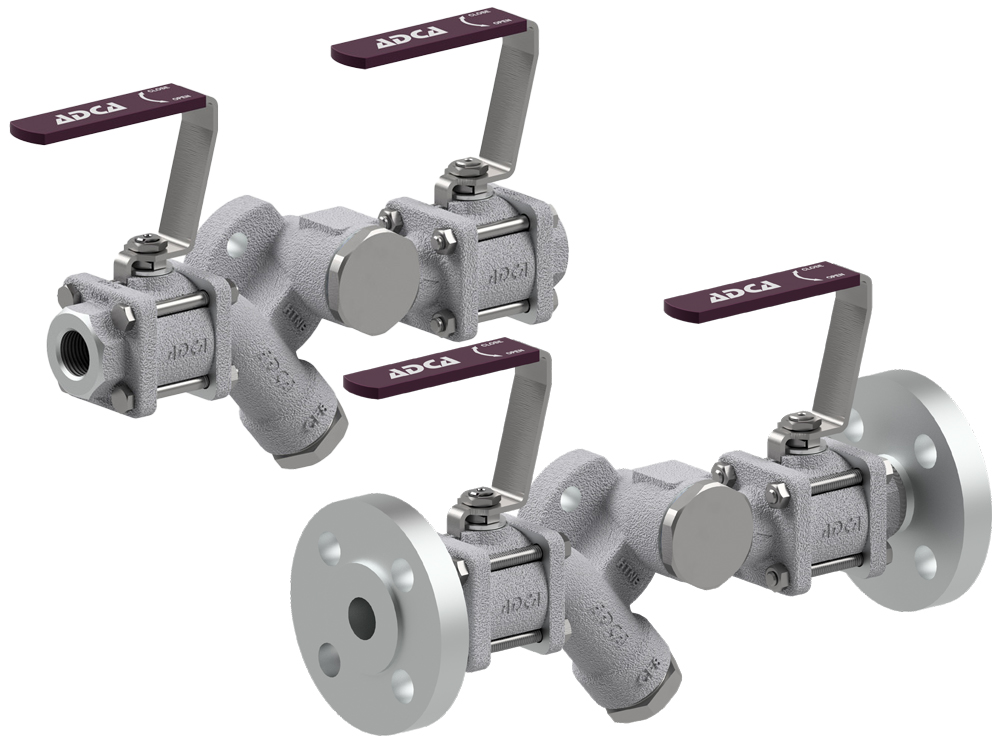

Product code: CTS4U
Compact universal trap station ADCA CTS4U with inlet and outlet shut-off valves
- Application

  Saturated and superheated steam,
  steam condensate
- Body material

  A351 CF8
- Available model

  CTS4U – with inlet and outlet shut-off valves
- Max. pressure for saturated steam

  17,5 bar
- Max. operating temperature

  230 ºC @ 10 bar
- Min. operating temperature

  -10 ºC
- Universal connector

  fits the two-bolt flange swivel connection steam traps
- Connections

  Female threaded ISO 7 Rp (NPT on request),
  Flanged EN 1092-1 PN 40,
  Flanged ASME B16.5 Class 150 or 300 on request
Dimension:
1/2” – 1”; DN15 – DN25

Price according to configuration

Available on request
More about the product
Valsteam ADCA

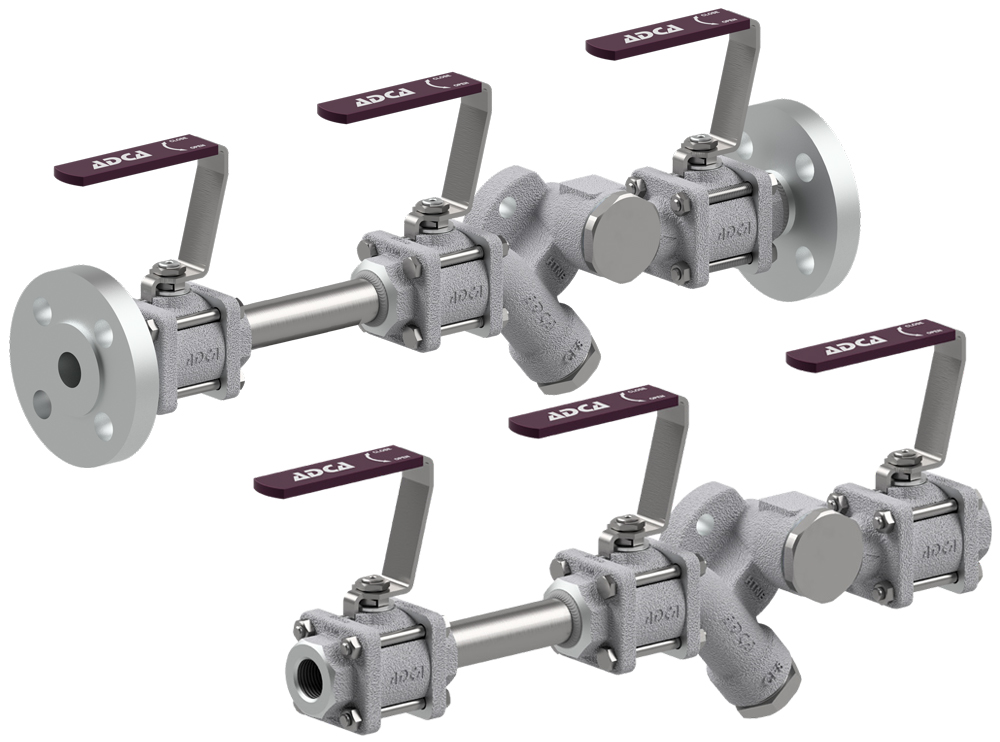

Product code: CTS4UD
Compact universal trap station ADCA CTS4UD with double inlet shut-off valves
- Application

  Saturated and superheated steam,
  steam condensate
- Body material

  Stainless steel A351 CF8
- Available model

  CTS4UD - Incl. double block at the inlet
- Max. pressure for saturated steam

  17,5 bar
- Max. operating temperature

  230 ºC @ 10 bar
- Min. operating temperature

  -10 ºC
- Universal connector

  fits the two-bolt flange swivel connection steam traps
- Connections

  Female threaded ISO 7 Rp (NPT on request),
  Flanged EN 1092-1 PN 40,
  Flanged ASME B16.5 Class 150 or 300 on request
Dimension:
1/2” – 1”; DN15 – DN25

Price according to configuration

Available on request
More about the product
Valsteam ADCA

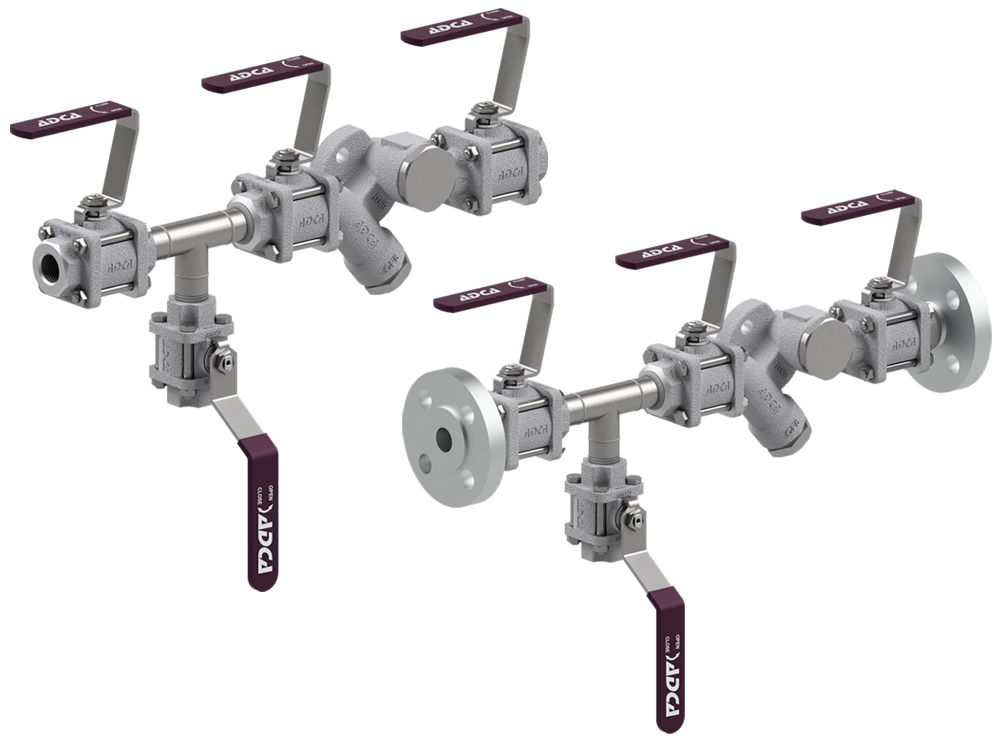

Product code: CTS4UDB
Compact universal trap station ADCA CTS4UDB with double inlet shut-off valves and bleed valve
- Application

  Saturated and superheated steam,
  steam condensate
- Body material

  Stainless steel A351 CF8
- Available model

  CTS4UDB - Incl. inlet double block and bleed - horizontal in,
  CTS4UDB-V - Incl. inlet double block and bleed - vertical in
- Max. pressure for saturated steam

  17,5 bar
- Max. operating temperature

  230 ºC @ 10 bar
- Min. operating temperature

  -10 ºC
- Universal connector

  fits the two-bolt flange swivel connection steam traps
- Connections

  Female threaded ISO 7 Rp (NPT on request),
  Flanged EN 1092-1 PN 40,
  Flanged ASME B16.5 Class 150 or 300 on request
- Bleed connection

  1/2" threaded bleed
Dimension:
1/2” – 1”; DN15 – DN25

Price according to configuration

Available on request
More about the product
Valsteam ADCA

Product code: UDT46
Universal thermodynamic steam trap ADCA UDT46 with two-bolt universal connector
- Type of Steam Trap

  Thermodynamic
- Application

  Saturated and superheated steam,
  steam condensate
- Body material

  Stainless steel A351 CF8
- Max. operating pressure

  32 bar
- Min. working pressure

  1,5 bar
- Max. operating temperature

  245 ºC
- Flow rate capacity

  Up to 695 kg/h
- Differential pressure

  Delta P: 32 bar
- Universal connector

  two-bolt flange connection
Dimension:
According to the selected pipeline connector

Price according to configuration

Available on request
More about the product
Valsteam ADCA

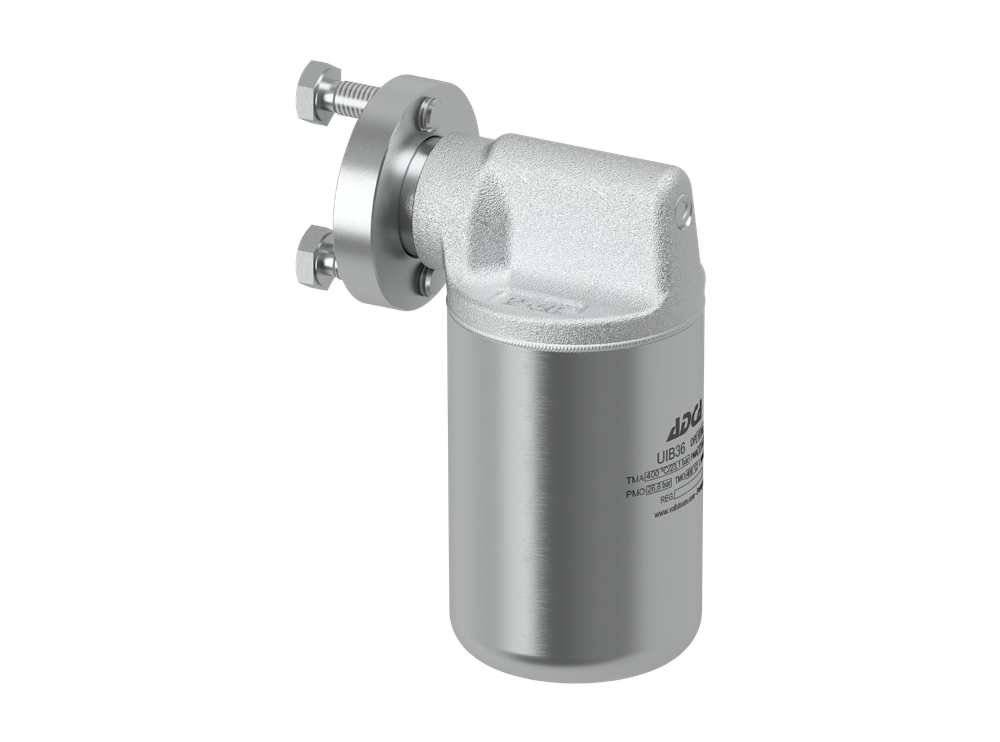

Product code: UIB36
Universal inverted bucket steam trap ADCA UIB36 with two-bolt universal connector
- Type of Steam Trap

  Inverted bucket
- Application

  Saturated and superheated steam,
  steam condensate
- Body material

  Stainless steel AISI 316L
- Max. operating pressure

  27 bar
- Min. working pressure

  1 bar
- Max. operating temperature

  400 ºC
- Flow rate capacity

  Up to 610 kg/h
- Differential pressure

  Delta P: 5 , 10, 15 and 27 bar
- Universal connector

  two-bolt flange connection
Dimension:
According to the selected pipeline connector

Price according to configuration

Available on request
More about the product
Valsteam ADCA

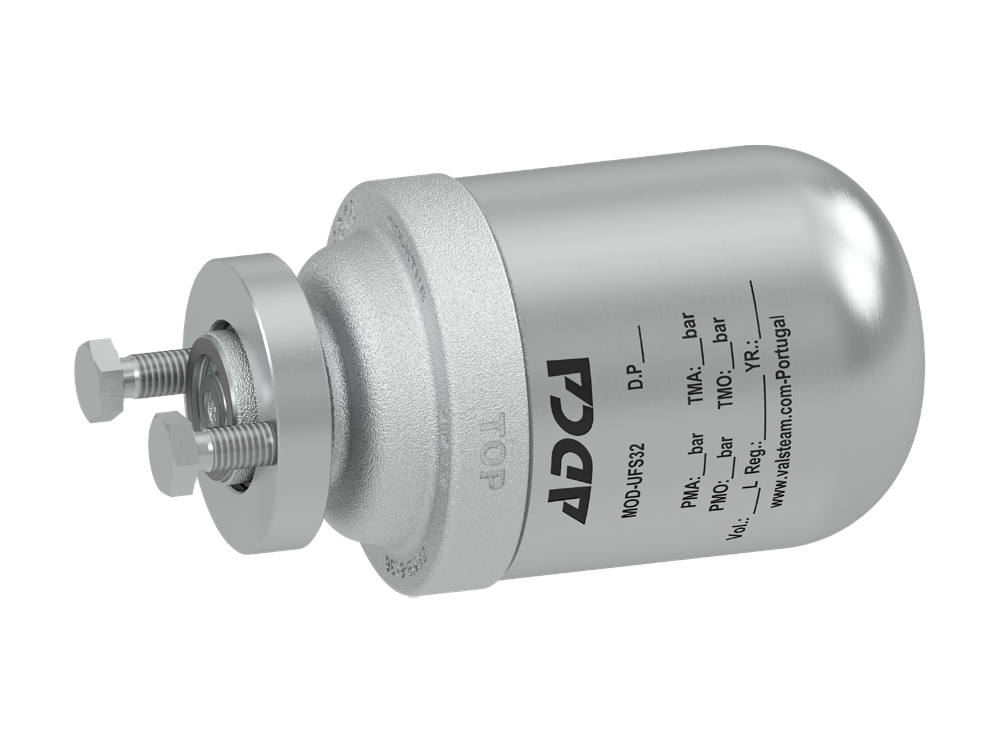

Product code: UFS32
Universal float steam trap ADCA UFS32 with two-bolt universal connector
- Type of Steam Trap

  Float
- Application

  Saturated and superheated steam,
  steam condensate
- Body material

  Stainless steel A351 CF8
- Max. operating pressure

  32 bar
- Min. working pressure

  0,5 bar
- Max. operating temperature

  245 ºC
- Flow rate capacity

  Up to 630 kg/h
- Differential pressure

  Delta P: 4,5 , 10, 14, 21 and 32 bar
- Universal connector

  two-bolt flange connection
Dimension:
According to the selected pipeline connector

Price according to configuration

Available on request
More about the product
Valsteam ADCA

Product code: UTS22
Universal thermostatic steam trap ADCA UTS22 with two-bolt universal connector
- Type of Steam Trap

  Thermostatic
- Application

  Saturated and superheated steam,
  steam condensate
- Body material

  Stainless steel AISI 316L
- Max. operating pressure

  22 bar
- Min. working pressure

  0,2 bar
- Max. operating temperature

  250 ºC
- Flow rate capacity

  Up to 795 kg/h
- Differential pressure

  Delta P: 22 bar
- Type thermostat

  Thermostats for different sub coolings 10 ºC (standard type S thermostat),
  Thermostats for 5 ºC (type H) and 30 ºC (type L) also available
- Universal connector

  two-bolt flange connection
Dimension:
According to the selected pipeline connector

Price according to configuration

Available on request
More about the product
Valsteam ADCA

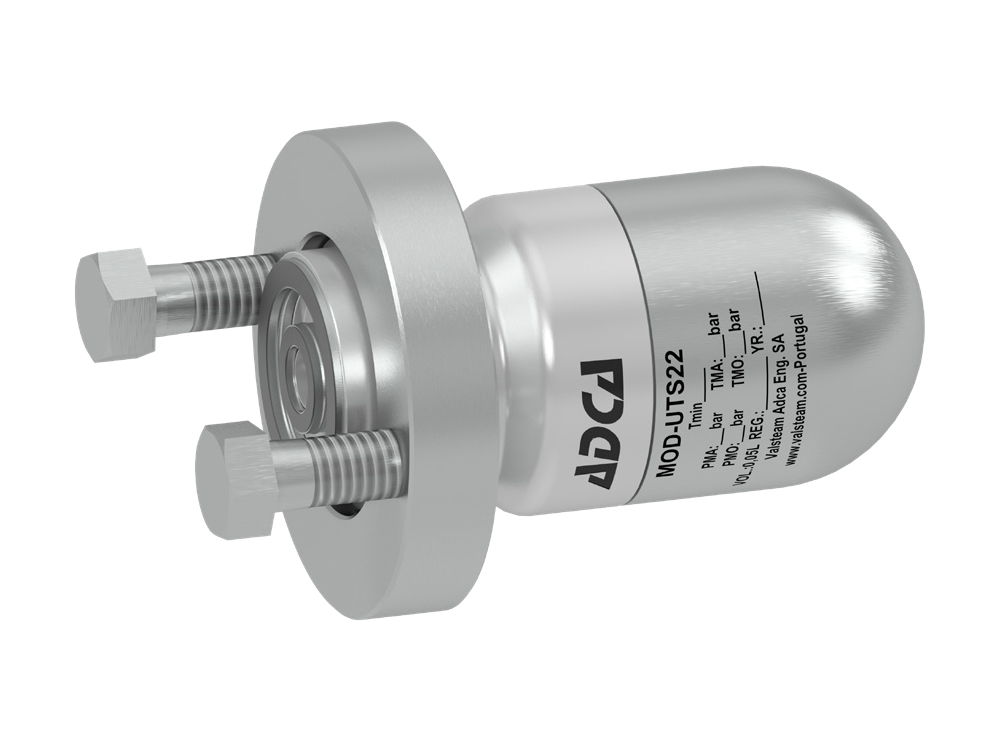

Product code: UTS22LC
Universal thermostatic steam trap ADCA UTS22LC (Low Capacity) with two-bolt universal connector
- Type of Steam Trap

  Thermostatic
- Application

  Saturated and superheated steam,
  steam condensate
- Body material

  Stainless steel AISI 316L
- Max. operating pressure

  22 bar
- Min. working pressure

  0,2 bar
- Max. operating temperature

  250 ºC
- Flow rate capacity

  Up to 415 kg/h (Low Capacity)
- Differential pressure

  Delta P: 22 bar
- Type thermostat

  Thermostats for different sub coolings 10 ºC (standard type S thermostat),
  Thermostats for 5 ºC (type H) and 30 ºC (type L) also available
- Universal connector

  two-bolt flange connection
Dimension:
According to the selected pipeline connector

Price according to configuration

Available on request
More about the product
Valsteam ADCA

Product code: UBS20
Universal bimetallic steam trap ADCA UBS20 with two-bolt universal connector
- Type of Steam Trap

  Bimetallic
- Application

  Saturated and superheated steam,
  steam condensate
- Body material

  Stainless steel AISI 316L
- Max. operating pressure

  17 bar
- Min. working pressure

  0,5 bar
- Max. operating temperature

  250 ºC
- Flow rate capacity

  Hot condensate discharge 10 ºC below saturation temperature: Up to 900 kg/h,
  Cold condensate discharge at 20 ºC: Up to 2235 kg/h
- Differential pressure

  Delta P: 16 bar
- Universal connector

  two-bolt flange connection
Dimension:
According to the selected pipeline connector

Price according to configuration

Available on request
More about the product
