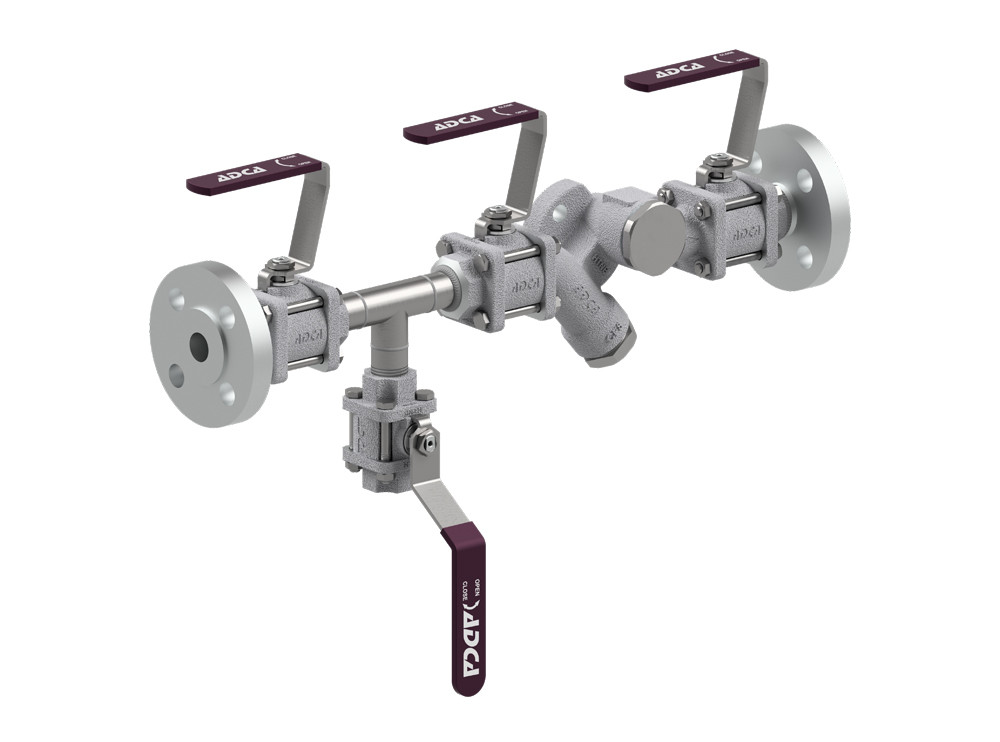

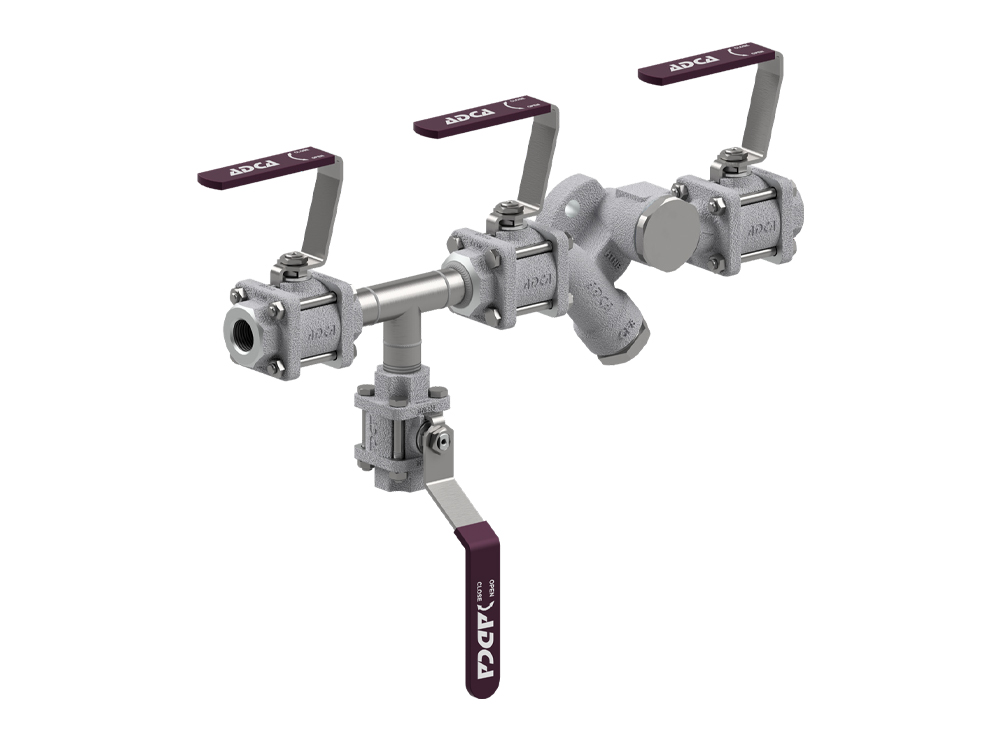

Compact universal trap station ADCA CTS4UDB with double inlet shut-off valves and bleed valve
Valsteam ADCA
Specifications
-
Application
Saturated and superheated steam,
steam condensate -
Body material
Stainless steel A351 CF8
-
Available model
CTS4UDB - Incl. inlet double block and bleed - horizontal in,
CTS4UDB-V - Incl. inlet double block and bleed - vertical in -
Max. pressure for saturated steam
17,5 bar
-
Max. operating temperature
230 ºC @ 10 bar
-
Min. operating temperature
-10 ºC
-
Universal connector
fits the two-bolt flange swivel connection steam traps
-
Connections
Female threaded ISO 7 Rp (NPT on request),
Flanged EN 1092-1 PN 40,
Flanged ASME B16.5 Class 150 or 300 on request -
Bleed connection
1/2" threaded bleed
Compact universal trap station ADCA CTS4UDB with double inlet shut-off valves and bleed valve
Product code: CTS4UDB
Available on request
Price according to configuration
Choose your configuration
- Threaded
- Flanged
- 1/2"
- 3/4"
- 1"
- 15
- 20
- 25
- two-bolt flange
