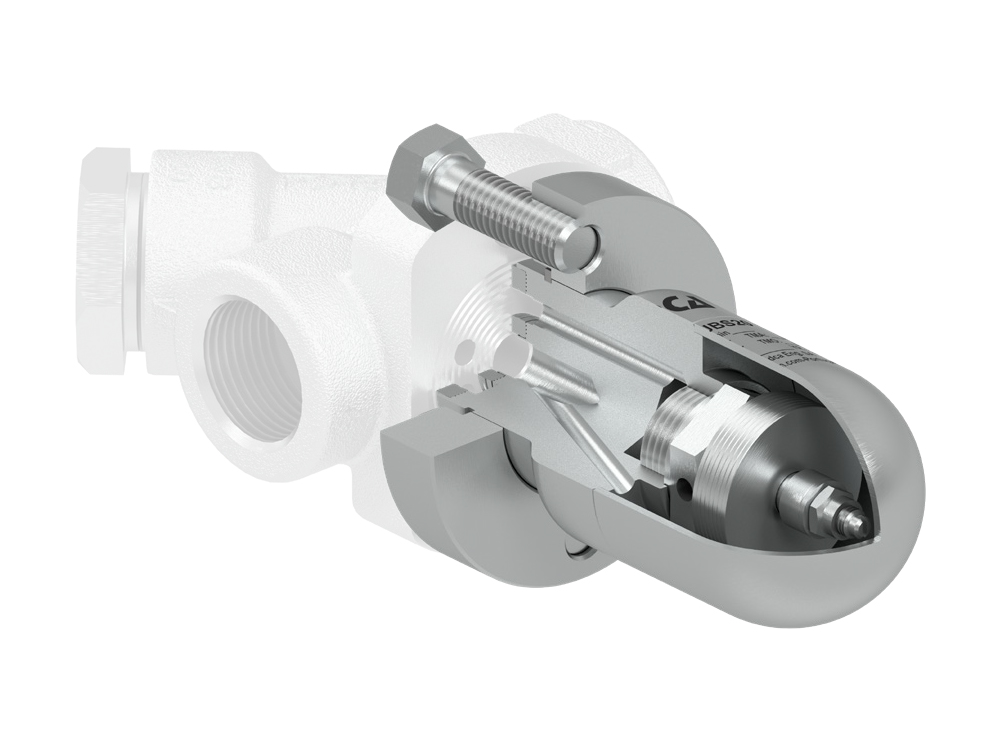

Universal bimetallic steam trap ADCA UBS20 with two-bolt universal connector
Valsteam ADCA
Specifications
-
Type of Steam Trap
Bimetallic
-
Application
Saturated and superheated steam,
steam condensate -
Body material
Stainless steel AISI 316L
-
Max. operating pressure
17 bar
-
Min. working pressure
0,5 bar
-
Max. operating temperature
250 ºC
-
Flow rate capacity
Hot condensate discharge 10 ºC below saturation temperature: Up to 900 kg/h,
Cold condensate discharge at 20 ºC: Up to 2235 kg/h -
Differential pressure
Delta P: 16 bar
-
Universal connector
two-bolt flange connection
Universal bimetallic steam trap ADCA UBS20 with two-bolt universal connector
Product code: UBS20
Available on request
Price according to configuration
Ref.#.
ex. VAT
(INDICATIVE PRICE)
Quantity
-
+
