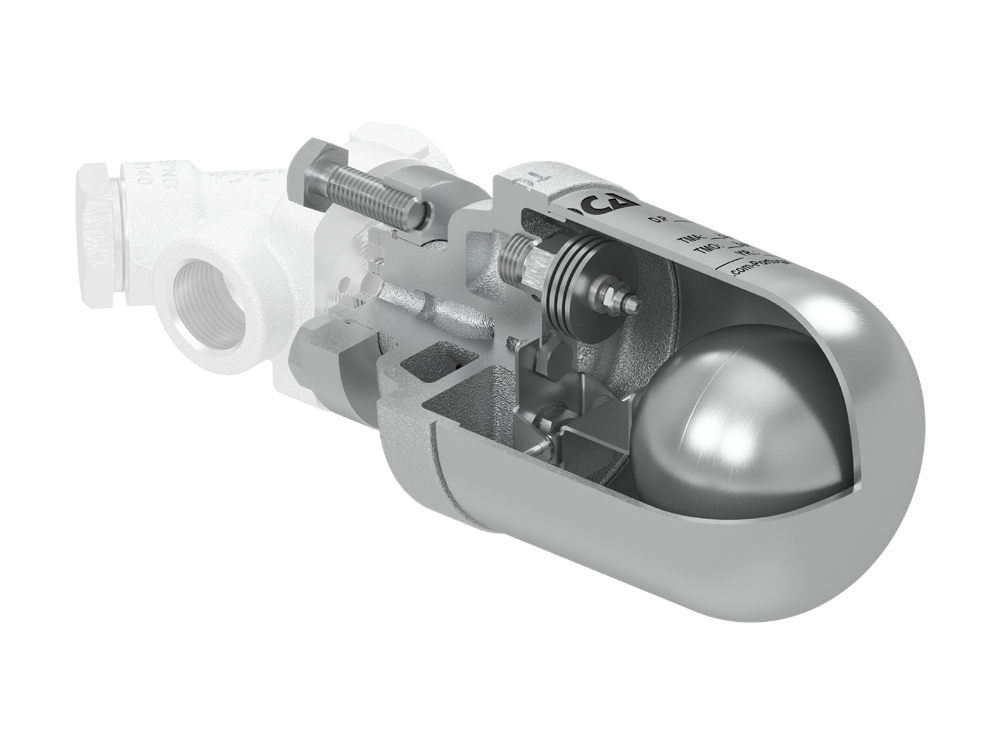

Universal float steam trap ADCA UFS32 with two-bolt universal connector

Specifications

  • Type of Steam Trap

    Float

  • Application

    Saturated and superheated steam,
    steam condensate

  • Body material

    Stainless steel A351 CF8

  • Max. operating pressure

    32 bar

  • Min. working pressure

    0,5 bar

  • Max. operating temperature

    245 ºC

  • Flow rate capacity

    Up to 630 kg/h

  • Differential pressure

    Delta P: 4,5 , 10, 14, 21 and 32 bar

  • Universal connector

    two-bolt flange connection

Universal float steam trap ADCA UFS32 with two-bolt universal connector

Product code: UFS32

Available on request

Price according to configuration

Choose your configuration
Choose on Option...
  • two-bolt flange
Choose on Option...
  • 4.5 bar
  • 10 bar
  • 14 bar
  • 21 bar
  • 32 bar
See all configuration
Ref.#.
ex. VAT
(INDICATIVE PRICE)

Quantity

-
+

No ready-made solution

The selected configuration has been added to the cart

Go to quotation request

See all configurations

Model Universal connector Differential pressure Ref Price Quantity
Universal float steam trap ADCA UFS32 UNC 3/8" DP=4.5 bar two-bolt flange 4.5 bar A.08.4502.015 €351.30
-
+
Universal float steam trap ADCA UFS32 UNC 3/8" DP=10 bar two-bolt flange 10 bar A.08.4503.015 €351.30
-
+
Universal float steam trap ADCA UFS32 UNC 3/8" DP=14 bar two-bolt flange 14 bar A.08.4504.015 €351.30
-
+
Universal float steam trap ADCA UFS32 UNC 3/8" DP=21 bar two-bolt flange 21 bar A.08.4505.015 €351.30
-
+
Universal float steam trap ADCA UFS32 UNC 3/8" DP=32 bar two-bolt flange 32 bar A.08.4506.015 €351.30
-
+

The UFS32 series float and thermostatic (integral air vent) steam traps are maintenance-free and sealed. They are specifically designed to work with low and medium pressure steam and all types of heating and process equipment. Typical applications include unit heaters, heat exchangers, driers, jacketed vessels, and all the applications where continuous drainage is essential.
