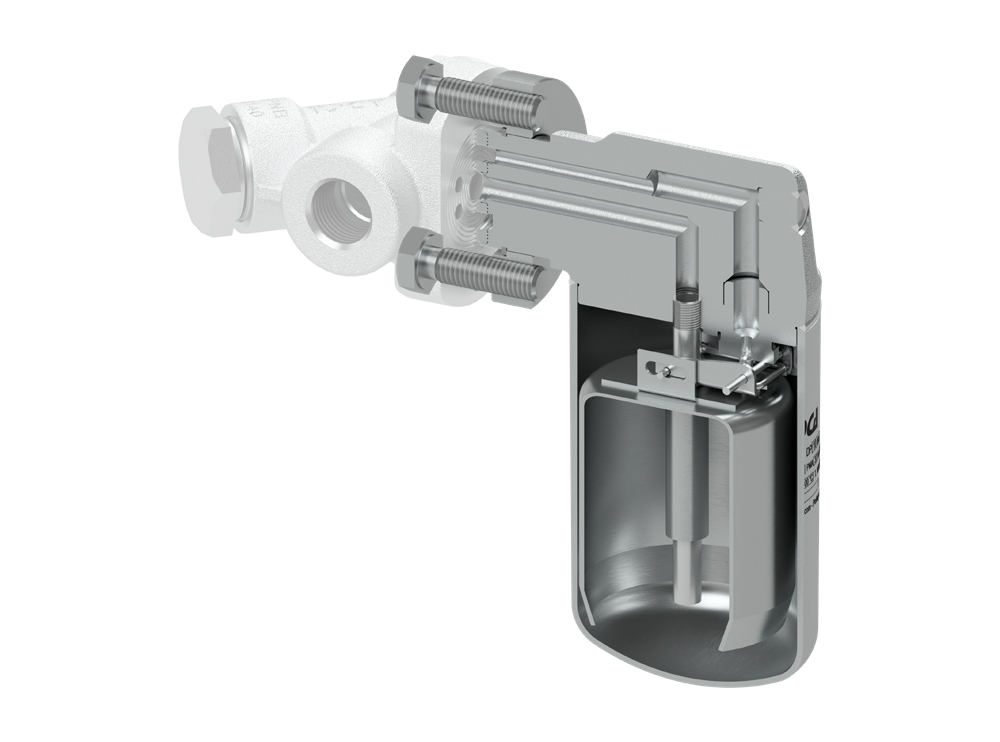

Universal inverted bucket steam trap ADCA UIB36 with two-bolt universal connector

Specifications

  • Type of Steam Trap

    Inverted bucket

  • Application

    Saturated and superheated steam,
    steam condensate

  • Body material

    Stainless steel AISI 316L

  • Max. operating pressure

    27 bar

  • Min. working pressure

    1 bar

  • Max. operating temperature

    400 ºC

  • Flow rate capacity

    Up to 610 kg/h

  • Differential pressure

    Delta P: 5 , 10, 15 and 27 bar

  • Universal connector

    two-bolt flange connection

Universal inverted bucket steam trap ADCA UIB36 with two-bolt universal connector

Product code: UIB36

Available on request

Price according to configuration

Choose your configuration
Choose on Option...
  • two-bolt flange
Choose on Option...
  • 5 bar
  • 10 bar
  • 15 bar
  • 27 bar
See all configuration
Ref.#.
ex. VAT
(INDICATIVE PRICE)

Quantity

-
+

No ready-made solution

The selected configuration has been added to the cart

Go to quotation request

See all configurations

Model Universal connector Differential pressure Ref Price Quantity
Universal inverted bucket steam trap ADCA UIB36 UNC 3/8" DP=5 bar two-bolt flange 5 bar A.08.5502.015 €428.90
-
+
Universal inverted bucket steam trap ADCA UIB36 UNC 3/8" DP=10 bar two-bolt flange 10 bar A.08.5503.015 €428.90
-
+
Universal inverted bucket steam trap ADCA UIB36 UNC 3/8" DP=15 bar two-bolt flange 15 bar A.08.5504.015 €428.90
-
+
Universal inverted bucket steam trap ADCA UIB36 UNC 3/8" DP=27 bar two-bolt flange 27 bar A.08.5505.015 €428.90
-
+

The UIB36 series inverted bucket steam traps, completely in stainless steel, are maintenance free and sealed. These steam traps operate intermittently, and are suitable for use with low to high pressure saturated or superheated steam. Typical applications include drip points, steam tracing lines, dryers, chemical and laundry equipment. These traps fit the UCX universal connectors and CTS4U compact stations.
