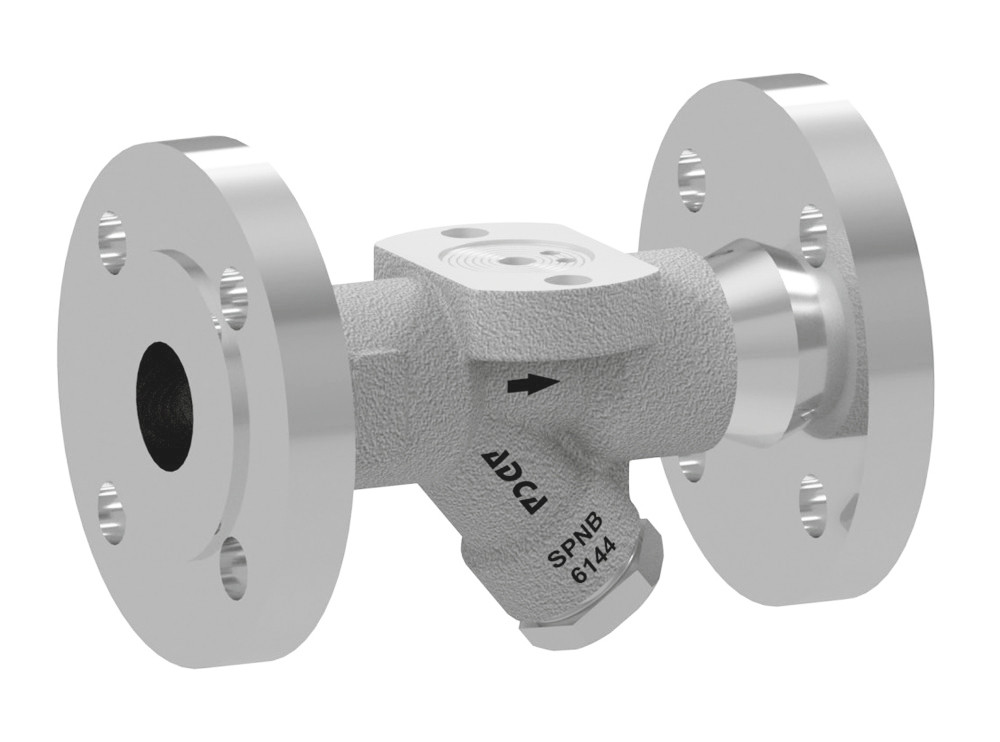

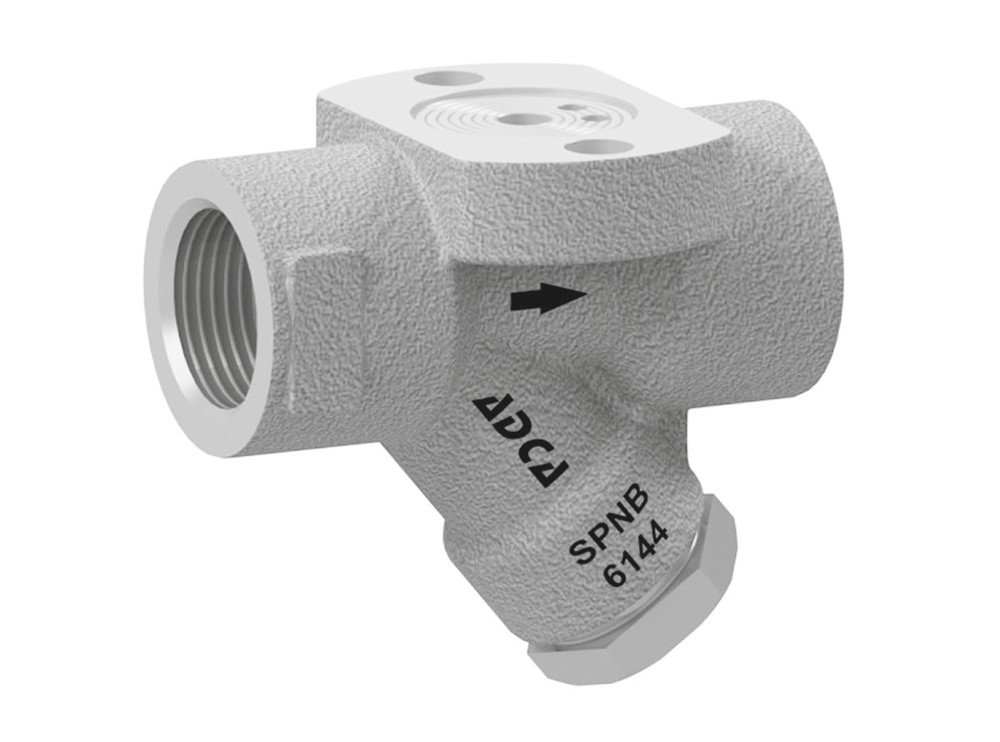

Universal pipeline connector ADCA UCX41 two-bolt connection steam traps
Valsteam ADCA
Specifications
-
Application
Saturated and superheated steam,
steam condensate -
Body material
Stainless steel A351 CF8
-
Max. allowable pressure
47,8 bar
-
Max. allowable temperature
400 ºC
-
Universal connector
fits the two-bolt flange swivel connection steam traps
-
Connections
Female threaded ISO 7 Rp (NPT on request),
Flanged EN 1092-1 PN 40,
Flanged ASME B16.5 Class 150 or 300 on request,
Socket weld (SW) ASME B16.11 on request,
Butt weld (BW) ASME B16.25 on request
Universal pipeline connector ADCA UCX41 two-bolt connection steam traps
Product code: UCX41
Available on request
Price according to configuration
Choose your configuration
- Threaded
- Flanged
- 1/2"
- 3/4"
- 1"
- 15
- 20
- 25
- two-bolt flange
See all configuration
Ref.#.
ex. VAT
(INDICATIVE PRICE)
Quantity
-
+
