Valsteam ADCA

Product code: adcr-01-2172-prv25s

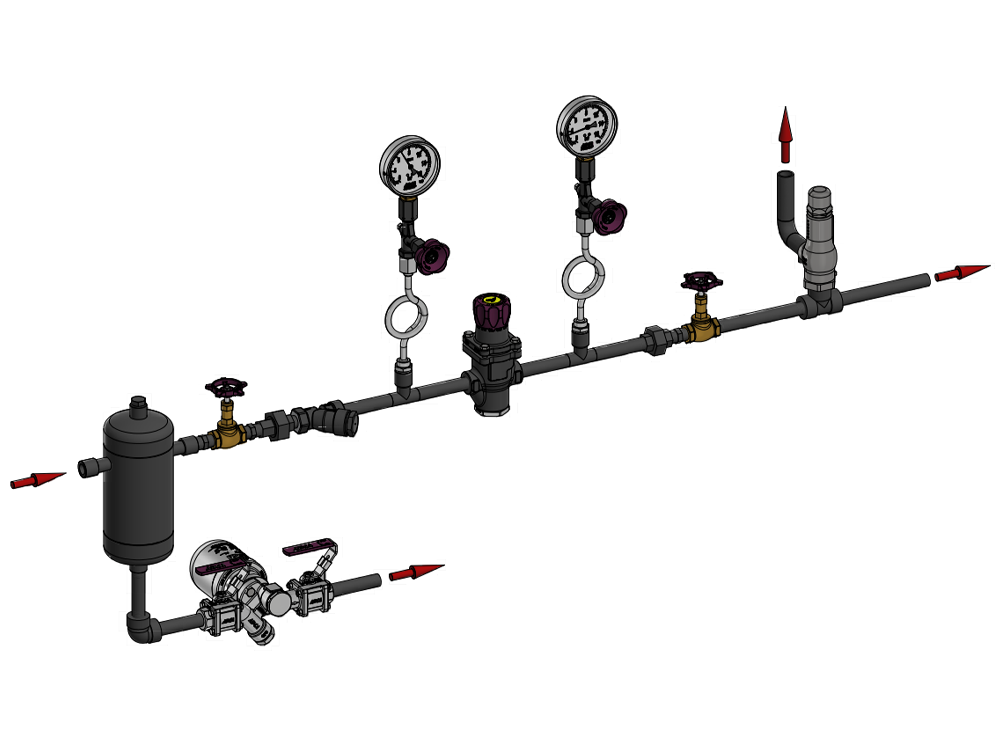

Pressure reducing station ADCA ADCR.01
- Application

  Steam,
  Saturated steam,
  Water,
  Compressed air and other gases
- Material

  Carbon steel,
  Full stainless steel construction, on request
- Max. upstream pressure

  Up to 14 bar
- Max. operating temperature

  for saturated steam up to 210 ºC,
  for water and gases up to 80 ºC
- Regulating range

  0,14 to 8,6 bar
- Flow rate capacity

  Saturated steam – Up to 543 (kg/h),
  Water – Up to 10,15 (m³/h),
  Compressed air – Up to 604 (Nm³/h),
- Sizes

  humidity separator – 1/2” to 2”,
  pressure regulator – 1/2” to 1”
- Connections

  Female threaded ISO 7 Rp,
  Female threaded NPT ASME B1.20.1 on request
Dimension:
According to specific installation requirements

Price according to configuration

Available on request
More about the product
Valsteam ADCA

Product code: adcr-02-2375-prv57s

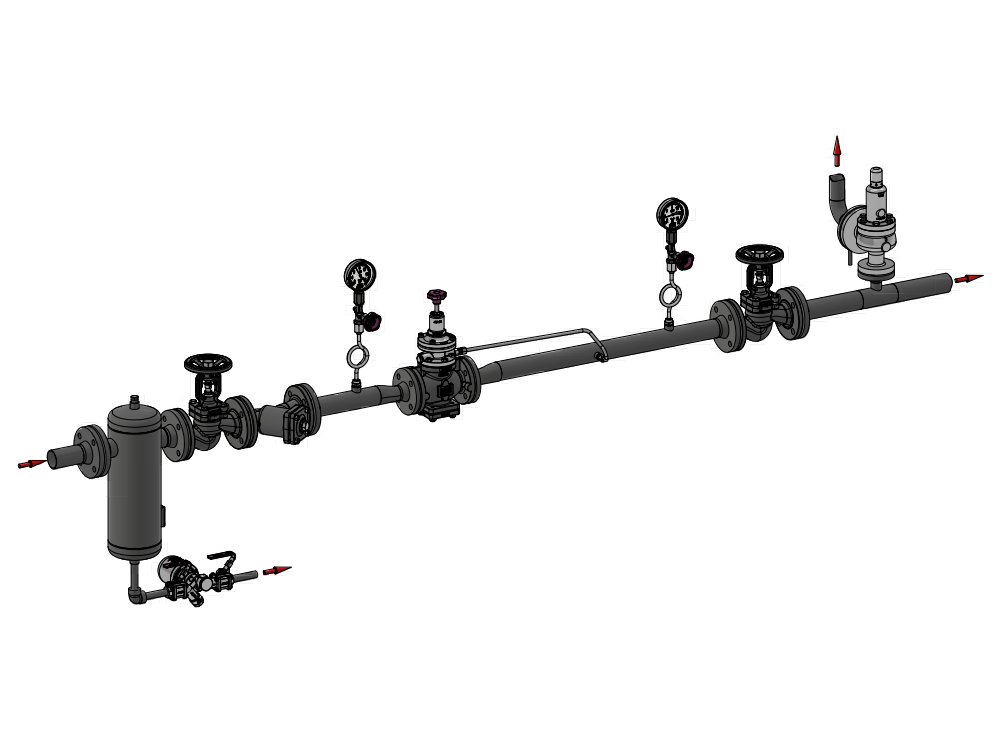

Pressure reducing station ADCA ADCR.02
- Application

  Steam,
  Saturated steam,
  Compressed air and other gases
- Material

  Carbon steel,
  Full stainless steel construction, on request
- Max. upstream pressure

  Up to 28 bar
- Max. operating temperature

  for saturated steam up to 250 ºC,
  for compressed air and gases up to 180 ºC
- Regulating range

  0,07 to 17 bar
- Flow rate capacity

  Saturated steam – up to 33164 (kg/h),
  Compressed air – up to 37962 (Nm³/h)
- Sizes

  humidity separator – DN15 to DN250,
  pressure regulator – DN15 to DN100
- Connections

  Flanged EN 1092-1 PN 16 or PN 40
Dimension:
According to specific installation requirements

Price according to configuration

Available on request
More about the product
Valsteam ADCA

Product code: adcr-04-3055-rp45s

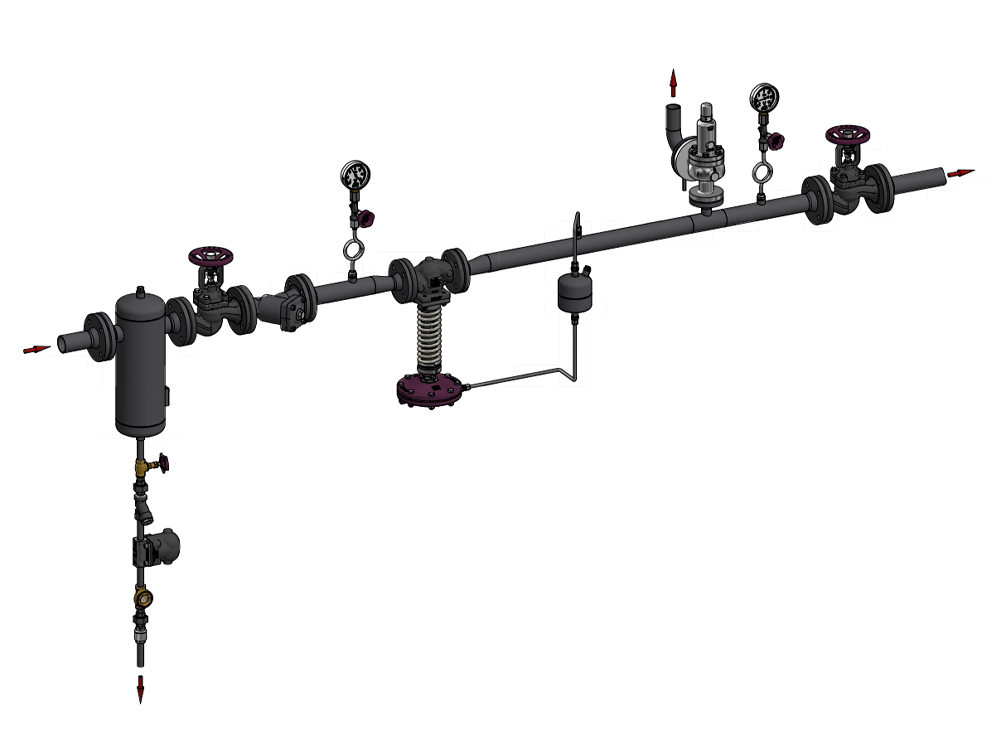

Pressure reducing station ADCA ADCR.04
- Application

  Steam,
  Saturated steam,
  Water,
  Compressed air and other gases
- Material

  Carbon steel,
  Full stainless steel construction, on request
- Max. upstream pressure

  Up to 25 bar
- Max. operating temperature

  for saturated steam up to 250 ºC,
  for water and gases up to 80 ºC
- Regulating range

  0,15 to 18 bar
- Flow rate capacity

  Saturated steam – up to 50000 (kg/h)
- Sizes

  humidity separator – DN15 to DN250,
  pressure regulator – DN15 to DN150
- Connections

  Flanged EN 1092-1 PN 16 or PN 40
Dimension:
According to specific installation requirements

Price according to configuration

Available on request
More about the product
Valsteam ADCA

Product code: adcr-05-4805-rp45tw

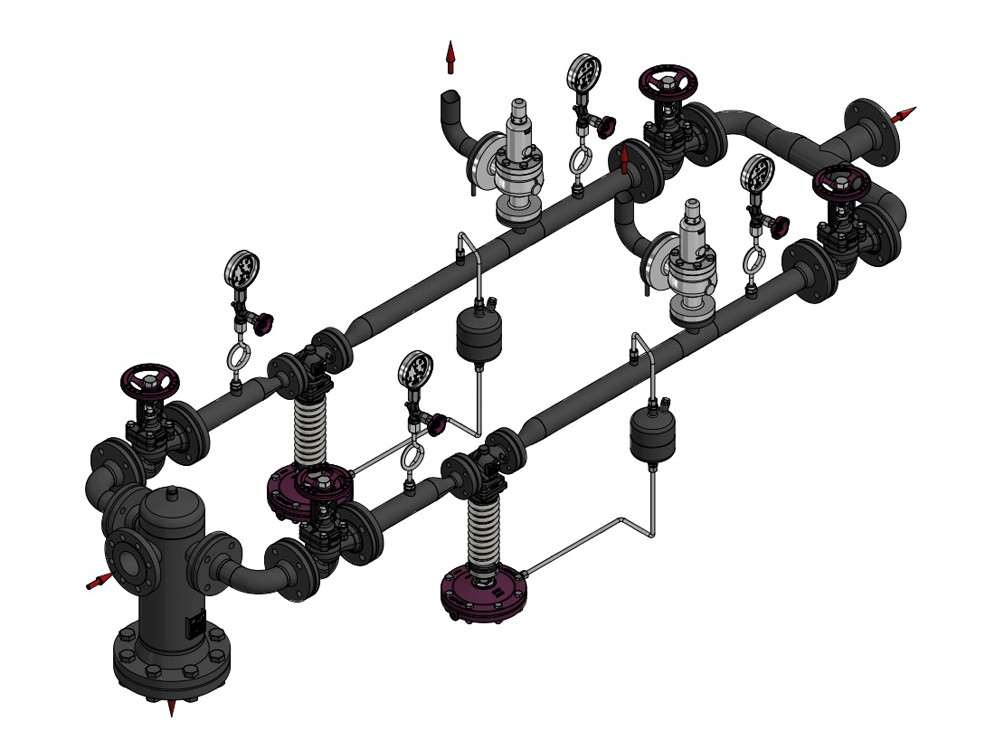

Pressure reducing station ADCA ADCR.05-RP45TW
- Application

  Steam,
  Saturated steam,
  Water,
  Compressed air and other gases
- Material

  Carbon steel,
  Full stainless steel construction, on request
- Max. upstream pressure

  Up to 25 bar
- Max. operating temperature

  for saturated steam up to 250 ºC,
  for water and gases up to 80 ºC
- Regulating range

  0,15 to 18 bar
- Flow rate capacity

  Saturated steam – up to 100000 (kg/h)
- Sizes

  S252/F separator – DN 15 to DN 300,
  pressure regulator – DN 15 to DN 100
- Connections

  Flanged EN 1092-1 PN 16 or PN 40
Dimension:
According to specific installation requirements

Price according to configuration

Available on request
More about the product
