Home → Catalogue → Steam equipment → Steam Traps → Thermostatic steam trap ADCA TH13A

Valsteam ADCA

Specifications

Application

Saturated steam,
steam condensate
Body material

Brass
Max. operating pressure

13 bar
Max. operating temperature

200 ºC
Flow rate capacity

Up to 360 kg/h
Differential pressure

Delta P: 13 bar
Type thermostat

Thermostats for different sub coolings 10 ºC (standard type S thermostat),
Thermostats for 5 ºC (type H) and 30 ºC (type L) also available
Connections

Female threaded ISO 7 Rp

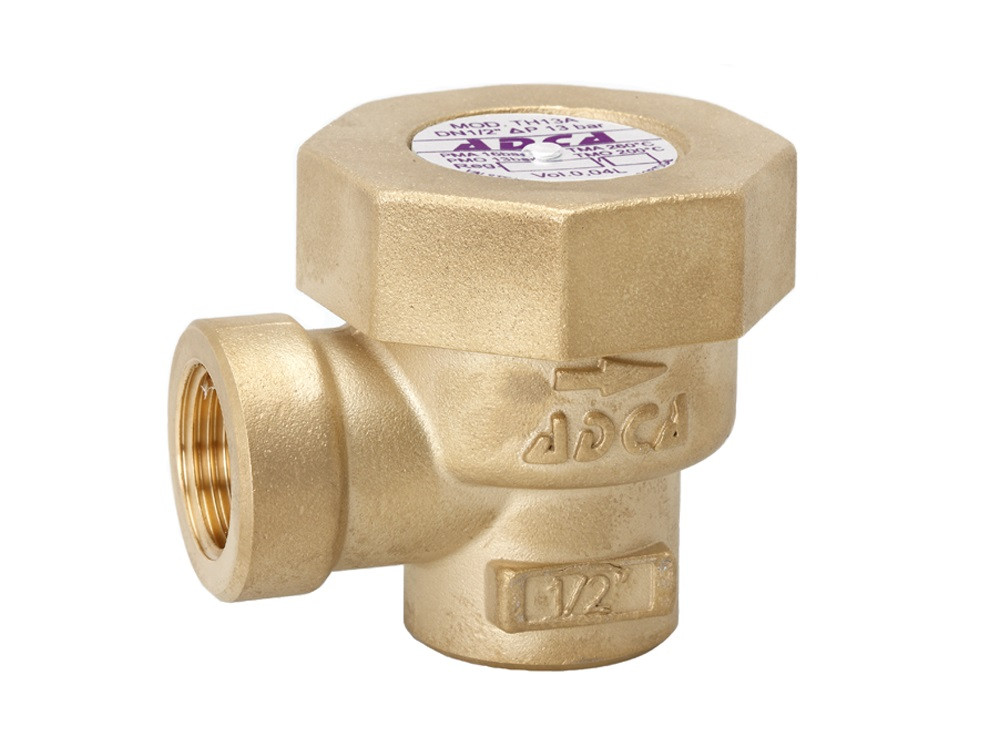

Thermostatic steam trap ADCA TH13A

Product code: TH13A

Available to Order

Price according to configuration

Choose your configuration

Type thermostat *

Choose on Option...

10 ºC (type S)
5 ºC (type H)
30 ºC (type L)

See all configuration

Ref.#.

ex. VAT

(INDICATIVE PRICE)

Quantity

No ready-made solution

The selected configuration has been added to the cart

Go to quotation request

See all configurations

Model Type thermostat Ref Price Quantity

Thermostatic steam trap ADCA TH13A BSP 1/2" dT=10°C 10 ºC (type S) A.42.2100.015 €130.10

Thermostatic steam trap ADCA TH13A BSP 1/2" dT=5°C 5 ºC (type H) A.42.2100.015H €130.10

Thermostatic steam trap ADCA TH13A BSP 1/2" dT=30°C 30 ºC (type L) A.42.2100.015L €130.10

The TH13A series thermostatic steam traps and air eliminators are specifically designed for use on process equipment such as kettle cookers, sterilizers, food, chemical and laundry equipment. Their small size makes them ideal for use with a wide variety of this equipment and especially as air eliminator.
