Valsteam ADCA
Product code: A.53.8017.000
Automatic air vent ADCA AE16SS maintenable for water systems
-
Application
Cold and hot water
-
Min. liquid specific weight
0,75 kg/dm³
-
Body material
Stainless steel A351 CF8M
-
Max. operating pressure
14 bar
-
Max. operating temperature
AE16SSE – EPDM valve sealing: 130 ºC,
AE16SSV – Viton valve sealing: 150 ºC -
Flow rate capacity
Up to 473 NL/min,
Values shown refer to capacities of air discharge at 15 ºC, under average atmospheric pressure (1013 mbar) -
Differential pressure
Delta P max.: 12 bar,
Delta P min.: 0,5 bar -
Type
Maintenable model
-
Option
Suffix “CK”: Version with integrated check valve
-
Connections
Female threaded ISO 7 Rp (NPT on request)
Dimension:
1/2”x1/2”; 3/4”x1/2”Price according to configurationAvailable to OrderMore about the product -
-
Valsteam ADCA
Product code: A.53.8100.000
Automatic air vent ADCA AE30SS sealed for liquid systems
-
Application
Cold, hot and superheated water,
Oil,
non-toxic fluid with a min. specific gravity of 0,75 kg/dm³ -
Body material
Stainless steel A351 CF8M
-
Max. operating pressure
30 bar
-
Max. operating temperature
Up to 300 ºC
-
Flow rate capacity
Up to 746 NL/min,
Values shown refer to capacities of air discharge at 15 ºC, under average atmospheric pressure (1013 mbar) -
Differential pressure
Delta P max.: 30 bar,
Delta P min.: 0,5 bar -
Valve sealing
metal to metal
-
Type
Sealed model
-
Option
Version with Inlet flanged, outlet threaded
-
Connections
Female threaded ISO 7 Rp (NPT on request)
Dimension:
1/2”x1/2”; 3/4”x1/2”Price according to configurationAvailable to OrderMore about the product -
-
Valsteam ADCA
Product code: AE50S6XXXVFB
Automatic air vent ADCA AE50S for liquid systems
-
Application
Cold, hot and superheated water,
Oil,
non-toxic fluid with a min. specific gravity of 0,75 kg/dm³ -
Body material
Carbon steel
-
Max. operating pressure
30 bar
-
Max. operating temperature
EPDM valve sealing: 130 ºC,
FPM / Viton valve sealing: 200 ºC,
Metal to metal sealing: 250 ºC -
Flow rate capacity
Up to 746 NL/min,
Values shown refer to capacities of air discharge at 15 ºC, under average atmospheric pressure (1013 mbar) -
Differential pressure
Delta P max.: 30 bar,
Delta P min.: 0,5 bar -
Valve sealing
Metal to metal; EPDM; FPM / Viton
-
Outlet pipe connection
Female threaded ISO 228,
Female threaded NPT, on request -
Inlet pipe connection
Female threaded ISO 7 Rp A,
Female threaded NPT, on request,
Flanged EN 1092-1 PN 40,
Flanged ASME B16.5 Class 150 or 300, on request
Dimension:
1/2”x1/2”–1”x1/2”; DN15x1/2” – DN25x1/2”Price according to configurationAvailable on requestMore about the product -
-

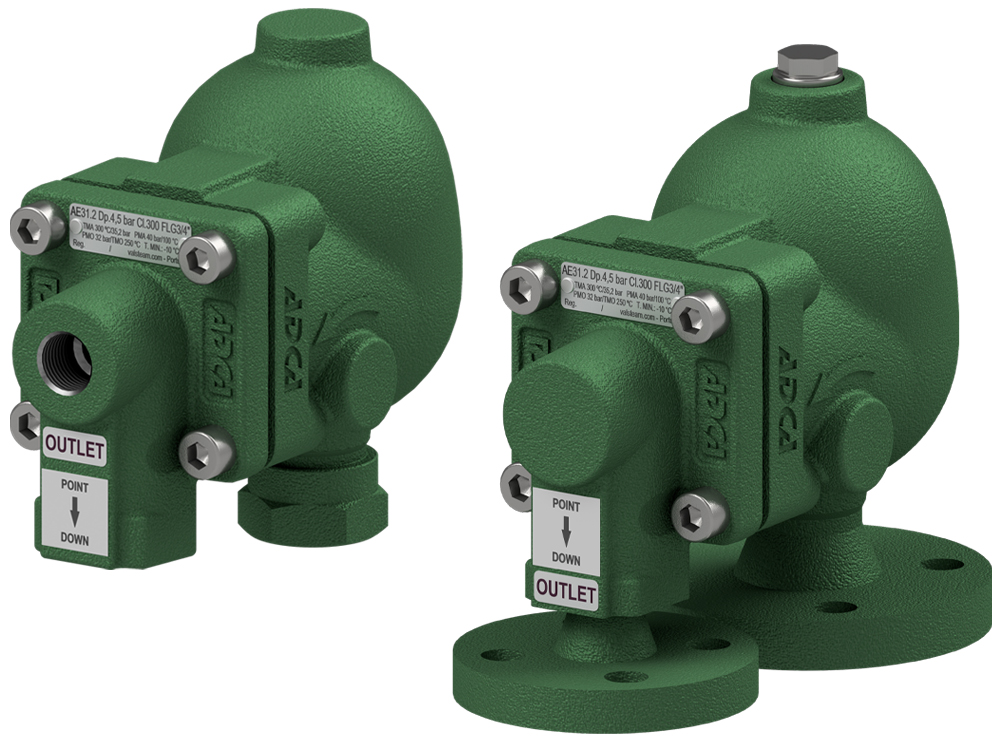

Valsteam ADCA
Product code: AE3127VXXVFA
Automatic air vent ADCA AE31.2 for liquid systems
-
Application
Cold, hot and superheated water,
Oil,
non-toxic fluid with a min. specific gravity of 0,75 kg/dm³ -
Body material
Carbon steel
-
Max. operating pressure
32 bar
-
Max. operating temperature
FPM / Viton valve sealing: 200 ºC,
Metal to metal sealing: 250 ºC -
Flow rate capacity
Up to 969 NL/min,
Values shown refer to capacities of air discharge at 15 ºC, under average atmospheric pressure (1013 mbar) -
Differential pressure
Delta P max.: 6, 14, 21 and 32 bar,
Delta P min.: 0,1 bar -
Valve sealing
Metal to metal; FPM / Viton
-
Connections
Female threaded ISO 7 Rp A,
Female threaded NPT, on request,
Flanged EN 1092-1 PN 40,
Flanged ASME B16.5 Class 150 or 300, on request
Dimension:
1”x1/2”; DN25x15Price according to configurationAvailable on requestMore about the product -
